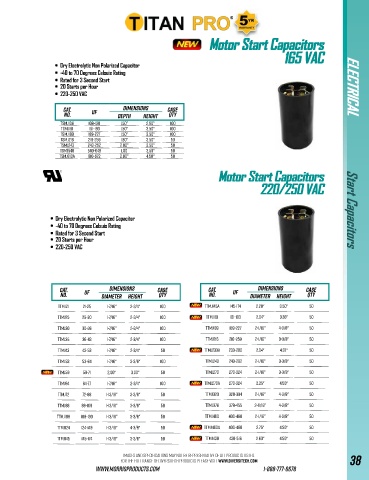

Page 41 - 2025 MORRIS Diversitech HVAC Catalog

Motor Start Capacitors
Motor Start Capacitors
165 VAC
165 VAC
• Dry Electrolytic Non Polarized Capacitor
• -40 to 70 Degrees Celsuis Rating
• Rated for 3 Second Start
• 20 Starts per Hour ELECTRICAL
• 220-250 VAC

CAT. uf Dimensions Case
NO. Depth Height Qty
TSMJ108 108-130 1.50" 2.90" 100
ELECTRICAL
TSMJ161 161-193 1.50" 3.50" 100
TSMJ189 189-227 1.50" 3.50" 100
TSMJ216 216-259 1.80" 3.50" 50
TSMJ243 243-292 2.00" 3.50" 50
TSMJ540 540-648 1.80 3.50" 50
TSMJ810A 810-972 2.00" 4.50" 50

Motor Start Capacitors
Motor Start Capacitors
220/250 VAC
220/250 VAC

• Dry Electrolytic Non Polarized Capacitor Start Capacitors
• -40 to 70 Degrees Celsuis Rating
• Rated for 3 Second Start
• 20 Starts per Hour
• 220-250 VAC

CAT. uf Dimensions Case CAT. uf Dimensions Case
NO. Diameter Height Qty NO. Diameter Height Qty

TTMJ21 21-25 1-7/16" 2-3/4" 100 TTMJ145A 145-174 2.20" 3.50" 50
TTMJ25 25-30 1-7/16" 2-3/4" 100 TTMJ161 161-193 2.04" 3.38" 50
TTMJ30 30-36 1-7/16" 2-3/4" 100 TTMJ189 189-227 2-1/16" 4-3/8" 50
TTMJ36 36-43 1-7/16" 2-3/4" 100 TTMJ216 216-259 2-1/16" 3-3/8" 50

TTMJ43 43-53 1-7/16" 2-3/4" 50 TTMJ233A 233-280 2.04" 4.37" 50
TTMJ53 53-64 1-7/16" 3-3/8" 100 TTMJ243 243-292 2-1/16" 3-3/8" 50
TTMJ59 59-71 2.00" 3.00" 50 TTMJ270 270-324 2-1/16" 3-3/8" 50

TTMJ64 64-77 1-7/16" 2-3/4" 100 TTMJ270A 270-324 2.25" 4.50" 50
TTMJ72 72-88 1-13/16" 3-3/8" 50 TTMJ320 320-384 2-1/16" 4-3/8" 50
TTMJ88 88-108 1-13/16" 3-3/8" 50 TTMJ378 378-455 2-9/16" 4-3/8" 50
TTMJ108 108-130 1-13/16" 3-3/8" 50 TTMJ400 400-480 2-1/16" 4-3/8" 50
TTMJ124 124-149 1-13/16" 4-3/8" 50 TTMJ400A 400-480 2.75" 4.50" 50

TTMJ145 145-174 1-13/16" 3-3/8" 50 TTMJ430 430-516 2.60" 4.50" 50

Images and Specifications may not be representative of all products listed.
