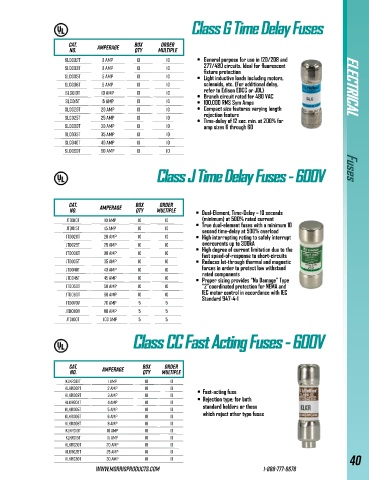

Page 43 - 2025 MORRIS Diversitech HVAC Catalog

Class G Time Delay FusesClass G Time Delay Fuses

CAT. Box ORDER
NO. Amperage Qty MULTIPLE

SLC002T 3 Amp 10 10 • General purpose for use in 120/208 and
SLC003T 3 Amp 10 10 277/480 circuits. Ideal for fluorescent
fixture protection
SLC005T 5 Amp 10 10 • Light inductive loads including motors,
SLC006T 6 Amp 10 10 solenoids, etc. (For additional delay,
SLC010T 10 Amp 10 10 refer to Edison EDCC or JDL) ELECTRICAL
• Branch circuit rated for 480 VAC
SLC015T 15 Amp 10 10 • 100,000 RMS Sym Amps
SLC020T 20 Amp 10 10 • Compact size features varying length
SLC025T 25 Amp 10 10 rejection feature
• Time-delay of 12 sec. min. at 200% for
ELECTRICAL
SLC030T 30 Amp 10 10 amp sizes 6 through 60
SLC035T 35 Amp 10 10
SLC040T 40 Amp 10 10
SLC060T 60 Amp 10 10

Class J Time Delay Fuses - 600VClass J Time Delay Fuses - 600V Fuses

CAT. Amperage Box ORDER
NO. Qty MULTIPLE • Dual-Element, Time-Delay – 10 seconds
JTD010T 10 Amp 10 10 (minimum) at 500% rated current
JTD015T 15 Amp 10 10 • True dual-element fuses with a minimum 10
second time-delay at 500% overload
JTD020T 20 Amp 10 10 • High interrupting rating to safely interrupt
JTD025T 25 Amp 10 10 overcurents up to 300kA
JTD030T 30 Amp 10 10 • High degree of current limitation due to the
fast speed-of-response to short-circuits
JTD035T 35 Amp 10 10 • Reduces let-through thermal and magnetic
JTD040T 40 Amp 10 10 forces in order to protect low withstand
JTD045T 45 Amp 10 10 rated components
• Proper sizing provides “No Damage” Type
JTD050T 50 Amp 10 10 “2”coordinated protection for NEMA and
JTD060T 60 Amp 10 10 IEC motor control in accordance with IEC
JTD070V 70 Amp 5 5 Standard 947-4-1
JTD080V 80 Amp 5 5
JTD100T 100 Amp 5 5

Class CC Fast Acting Fuses - 600VClass CC Fast Acting Fuses - 600V

CAT. Box ORDER
NO. Amperage Qty MULTIPLE
KLKR001T 1 Amp 10 10
KLKR002T 2 Amp 10 10
KLKR003T 3 Amp 10 10 • Fast-acting fuse
KLKR004T 4 Amp 10 10 • Rejection type; for both
KLKR005T 5 Amp 10 10 standard holders or those
KLKR006T 6 Amp 10 10 which reject other type fuses
KLKR008T 8 Amp 10 10
KLKR010T 10 Amp 10 10
KLKR015T 15 Amp 10 10
KLKR020T 20 Amp 10 10
KLKR025T 25 Amp 10 10
KLKR030T 30 Amp 10 10 40
