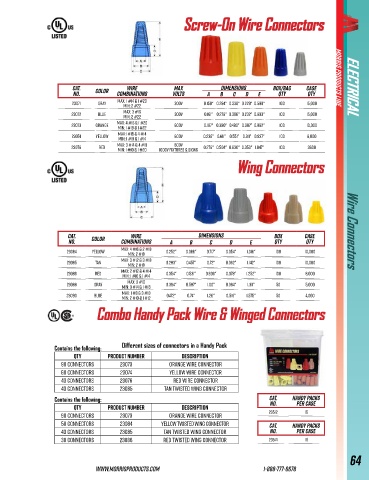

Page 67 - 2025 MORRIS Diversitech HVAC Catalog

Screw-On Wire Connectors
Screw-On Wire Connectors

Cat. Wire Max Dimensions Box/Bag Case Morris Products Line ELECTRICAL
No. Color Combinations Volts A B C D E Qty Qty
23071 Gray Max: 1 #14 & 1 #20 300V 0.150" 0.264" 0.339" 0.228" 0.598" 100 15,000
Min: 2 #22
23072 Blue Max: 3 #16 300V 0.161" 0.276" 0.386" 0.232" 0.693" 100 15,000
Min: 2 #22
ELECTRICAL
23073 Orange Max: 4 #16 & 1 #20 600V 0.197" 0.390" 0.480" 0.307" 0.862" 100 10,000
Min: 1 #18 & 1 #22
23074 Yellow Max:1 #18 & 4 #14 600V 0.236" 0.441" 0.551" 0.311" 0.937" 100 6,000
Min: 1 #18 & 1 #14
600V
23076 Red Max: 3 #14 & 4 #16 1000V fixtures & signs 0.276" 0.504" 0.630" 0.350" 1.047" 100 3600
Min: 1 #10 & 1 #20
Wing ConnectorsWing Connectors

Cat. Color Wire Dimensions Box Case Wire Connectors
No. Combinations A B C D E Qty Qty

23084 Yellow Max: 4 #16 & 2 #18 0.252" 0.386" 0.717" 0.354" 1.016" 100 10,000
Min: 2 #18
23085 Tan Max: 3 #12 & 3 #18 0.283" 0.457" 0.72" 0.362" 1.142" 100 10,000
Min: 2 #18
23086 Red Max: 2 #12 & 4 #14 0.354" 0.531" 0.906" 0.378" 1.252" 100 8,000
Min: 1 #16 & 1 #14
Max: 3 #10
23088 Gray Min: 3 #14 & 1 #18 0.394" 0.587" 1.00" 0.394" 1.311" 50 5,000
23090 Blue Max: 1 #8 & 3 #10 0.472" 0.74" 1.26" 0.516" 1.575" 50 4,000
Min: 2 #10 & 1 #12
Combo Handy Pack Wire & Winged ConnectorsCombo Handy Pack Wire & Winged Connectors

Different sizes of connectors in a Handy Pack
Contains the following:
Qty Product Number Description
90 Connectors 23073 Orange Wire Connector
60 Connectors 23074 Yellow Wire Connector
40 Connectors 23076 Red Wire Connector
40 Connectors 23085 Tan Twisted Wing Connector

Contains the following: Cat. Handy Packs
Qty Product Number Description No. Per Case
90 Connectors 23073 Orange Wire Connector 23512 16
50 Connectors 23084 Yellow Twisted Wing Connector Cat. Handy Packs
40 Connectors 23085 Tan Twisted Wing Connector No. Per Case
30 Connectors 23086 Red Twisted Wing Connector 23514 16

64

www.morrisproducts.com 1-888-777-6678
