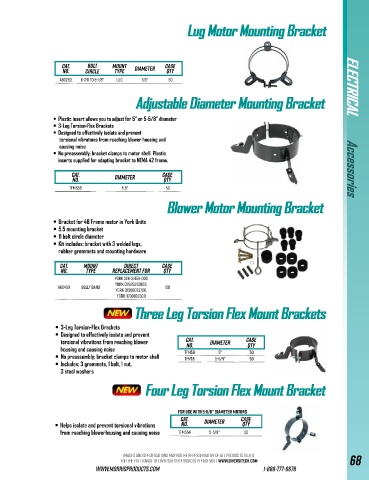

Page 71 - 2025 MORRIS Diversitech HVAC Catalog

Lug Motor Mounting BracketLug Motor Mounting Bracket

CAT. Bolt Mount Diameter Case
NO. Circle Type Qty
A80293 6-7/8 to 8-1/8" Lug 5.5" 50 ELECTRICAL

Adjustable Diameter Mounting BracketAdjustable Diameter Mounting Bracket

• Plastic insert allows you to adjust for 5" or 5-5/8" diameter
ELECTRICAL
• 3-Leg Torsion-Flex Brackets
• Designed to effectively isolate and prevent
torsional vibrations from reaching blower housing and
causing noise
• No preassembly; bracket clamps to motor shell. Plastic
inserts supplied for adapting bracket to NEMA 42 frame.

CAT. Diameter Case Accessories
NO. Qty
TFM556 5.5" 50
Blower Motor Mounting BracketBlower Motor Mounting Bracket

• Bracket for 48 Frame motor in York Units
• 5.5 mounting bracket
• 11 bolt circle diameter
• Kit includes: bracket with 3 welded legs,
rubber grommets and mounting hardware

CAT. Mount Direct Case
NO. Type Replacement For Qty
York 326-31459-000
York 02626372000,
A60459 Belly Band 108
York 37308073700,
York 3730807300
Three Leg Torsion Flex Mount BracketsThree Leg Torsion Flex Mount Brackets

• 3-Leg Torsion-Flex Brackets
• Designed to effectively isolate and prevent
torsional vibrations from reaching blower CAT. Diameter Case
Qty
NO.
housing and causing noise TFM50 5" 50
• No preassembly; bracket clamps to motor shell TFM55 5-5/8" 50
• Includes: 3 grommets, 1 bolt, 1 nut,
3 steel washers

Four Leg Torsion Flex Mount BracketFour Leg Torsion Flex Mount Bracket

For use with 5-5/8" diameter motors
CAT. Diameter Case
• Helps isolate and prevent torsional vibrations NO. Qty
from reaching blowerhousing and causing noise TFM554 5-5/8" 50

Images and Specifications may not be representative of all products listed.
