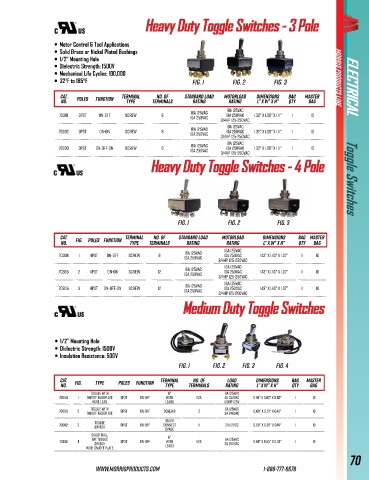

Page 73 - 2025 MORRIS Diversitech HVAC Catalog

Heavy Duty Toggle Switches - 3 Pole
Heavy Duty Toggle Switches - 3 Pole

• Motor Control & Tool Applications
• Solid Brass or Nickel Plated Bushings
• 1/2" Mounting Hole
• Dielectric Strength: 1500V
• Mechanical Life Cycles: 100,000
• 32°F to 185°F Fig. 1 Fig. 2 Fig. 3 Morris Products Line

Cat. Poles Function Terminal No. of Standard Load MotorLoad Dimensions Bag Master ELECTRICAL
No. Type Terminals Rating Rating L” x W” x H” Qty Bag
18A 125VAC
18A 125VAC
70301 3PST On-Off Screw 6 10A 250VAC 3/4HP 125-250VAC 1.32" x 1.09" x 1.11" 1 10
10A 250VAC
ELECTRICAL
18A 125VAC
18A 125VAC
10A 250VAC
70302 3PDT On-On Screw 9 10A 250VAC 3/4HP 125-250VAC 1.32" x 1.09" x 1.11" 1 10
18A 125VAC
18A 125VAC
10A 250VAC
70303 3PDT On-Off-On Screw 9 10A 250VAC 3/4HP 125-250VAC 1.32" x 1.09" x 1.11" 1 10
Heavy Duty Toggle Switches - 4 Pole
Heavy Duty Toggle Switches - 4 Pole Toggle Switches

Fig. 1 Fig. 2 Fig. 3

Cat. Terminal No. of Standard Load MotorLoad Dimensions Bag Master
No. Fig. Poles Function Type Terminals rating Rating L” x W” x H” Qty Bag
16A 125VAC
16A 125VAC
70304 1 4PST On-Off Screw 8 10A 250VAC 3/4HP 125-250VAC 1.43" x 1.40" x 1.07" 1 10
10A 250VAC
16A 125VAC
16A 125VAC
70305 2 4PDT On-On Screw 12 10A 250VAC 3/4HP 125-250VAC 1.43" x 1.40" x 1.07" 1 10
10A 250VAC
16A 125VAC
16A 125VAC
70306 3 4PDT On-Off-On Screw 12 10A 250VAC 3/4HP 125-250VAC 1.43" x 1.40" x 1.07" 1 10
10A 250VAC
Medium Duty Toggle Switches
Medium Duty Toggle Switches

• 1/2” Mounting Hole
• Dielectric Strength: 1500V
• Insulation Resistance: 500V
Fig. 1 Fig. 2 Fig. 3 Fig. 4

Cat. Fig. Type Poles Function Terminal No. of Load Dimensions Bag Master
No. Type Terminals Rating L” x W” x H” Qty Bag
Toggle with 6” 8A 125VAC
70050 1 On/Off faceplate SPST On-Off Wire N/A 4A 250VAC 0.98" x 0.62" x 0.62" 1 10
Wire Lead Leads 1/3HP 125V
Toggle with
6A 125VAC
70060 2 On/Off faceplate SPST On-Off Screws 2 3A 240VAC 0.69" x 0.57" x 0.40" 1 10
Quick
Toggle
70062 3 Switch SPST On-Off Connect 1 21A 12VDC 0.69" x 0.55" x 0.45" 1 10
Spade
Short Ball 6”
6A 125VAC
70061 4 Bat Toggle SPST On-Off Wire N/A 3A 250VAC 0.69" x 0.55" x 0.34" 1 10
Switch
With On/Off Plate Leads
