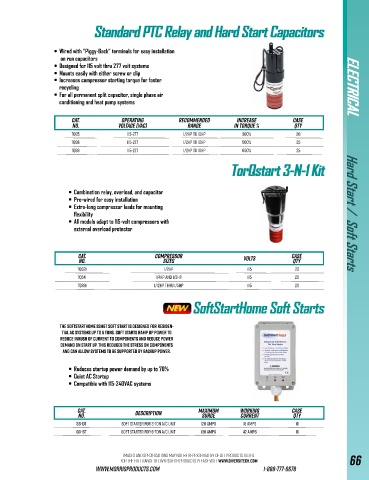

Page 69 - 2025 MORRIS Diversitech HVAC Catalog

Standard PTC Relay and Hard Start CapacitorsStandard PTC Relay and Hard Start Capacitors

• Wired with “Piggy-Back” terminals for easy installation
on run capacitors
• Designed for 115 volt thru 277 volt systems
• Mounts easily with either screw or clip
• Increases compressor starting torque for faster
recycling ELECTRICAL
• For all permanent split capacitor, single phase air
conditioning and heat pump systems

CAT. Operating Recommended Increase Case
ELECTRICAL
NO. Voltage (VAC) Range in Torque % Qty
TQS5 115-277 1/2HP to 10HP 300% 20
TQS6 115-277 1/2HP to 10HP 500% 25
TQS8 115-277 1/2HP to 10HP 600% 25

TorQstart 3-N-1 KitTorQstart 3-N-1 Kit

• Combination relay, overload, and capacitor
• Pre-wired for easy installation
• Extra-long compressor leads for mounting
flexibility Hard Start / Soft Starts
• All models adapt to 115-volt compressors with
external overload protector

CAT. Compressor Volts Case
NO. Sizes Qty
TQS21 1/2HP 115 20
TQS41 1/4HP and 1/3HP 115 20
TQS81 1/12HP Thru 1/5HP 115 20

SoftStartHome Soft StartsSoftStartHome Soft Starts

The SoftStartHome SSH6T soft start is designed for residen-
tial AC systems up to 6 tons. Soft starts ramp up power to
reduce inrush of current to components and reduce power
demand on start up. This reduces the stress on components
and can allow systems to be supported by backup power.

• Reduces startup power demand by up to 70%
• Quiet AC Startup
• Compatible with 115-240VAC systems

CAT. Description Maximum Working Case
NO. Surge Current Qty
SSH3T Soft Starter for 3-Ton A/C Unit 120 Amps 18 Amps 10
SSH6T Soft Starter for 6-Ton A/C Unit 130 Amps 42 Amps 10

Images and Specifications may not be representative of all products listed.
FOR THE FULL RANGE OF DIVERSITECH PRODUCTS PLEASE VISIT www.DIVERSITECH.COM 66
www.morrisproducts.com 1-888-777-6678
