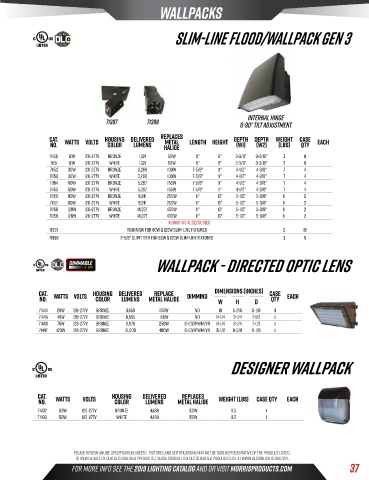

Page 39 - 2020 October Lighting Catalog

WALLPACKS

Slim-Line Flood/Wallpack Gen 3

Internal Hinge
71397 71398 0-90° Tilt Adjustment

Cat. Watts volts Housing Delivered Replaces Length Height Depth Depth Weight Case Each
Metal
No. Color Lumens Halide (W1) (W2) (Lbs) Qty
71150 12W 120-277V Bronze 1,321 60W 5" 6" 3-3/8” 3-3/16" 3 8
71151 12W 120-277V White 1,321 60W 5" 6" 3-3/8” 3-3/16" 3 8
71152 30W 120-277V Bronze 3,298 100W 7-5/8" 11" 4-1/2” 4-3/8" 7 4
71153 30W 120-277V White 3,298 100W 7-5/8" 11" 4-1/2” 4-3/8" 7 4
71154 50W 120-277V Bronze 5,287 150W 7-5/8" 11" 4-1/2” 4-3/8" 7 4
71155 50W 120-277V White 5,287 150W 7-5/8" 11" 4-1/2” 4-3/8" 7 4
71156 80W 120-277V Bronze 9,241 250W 11" 13" 5-1/2” 5-3/8" 11 2
71157 80W 120-277V White 9,241 250W 11" 13" 5-1/2” 5-3/8" 11 2
71158 120W 120-277V Bronze 14,227 400W 11" 13" 5-1/2” 5-3/8" 11 2
71159 120W 120-277V White 14,227 400W 11" 13" 5-1/2” 5-3/8" 11 2
Mounting Accessories
71397 Trunnion for 80W & 120W Slim-Line Fixtures 2 10
71398 2-3/8” Slipfitter for 80W & 120W Slim-Line Fixtures 3 5

WallPack - Directed Optic Lens
0-10V

Cat. Housing Delivered Replace Dimensions (Inches) Case
No. Watts Volts Color Lumens Metal Halide Dimming w h d Qty Each
71444 28w 120-277v Bronze 3,460 100W no 10 5-7/16 5-1/8 4
71445 48w 120-277v Bronze 6,595 150W no 14-1/4 9-1/4 7-1/2 1
71446 75w 120-277v Bronze 9,978 250W 0-10V/PWM/VR 14-1/4 9-1/4 7-1/2 1
71447 120w 120-277v Bronze 15,000 400W 0-10V/PWM/VR 18-1/2 8-5/8 9-1/8 1

Designer Wallpack

Cat. Watts volts Housing Delivered Replaces Weight (Lbs) Case Qty Each
No. Color Lumens Metal Halide
71432 50w 120-277V Bronze 4,489 150W 6.5 1
71433 50w 120-277V White 4,489 150W 6.5 1

Please review online specification sheets. Pictures and certifications may not be 100% representative of the product listed.
To view details of our DLC qualified products, please consult the DLC Qualified Products List at www.designlights.org/qpl
