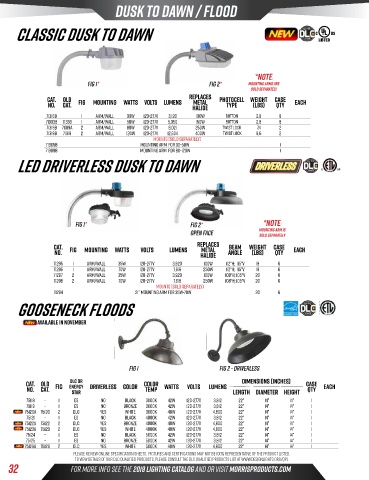

Page 34 - 2020 October Lighting Catalog

DUSK TO DAWN / Flood

Classic Dusk To Dawn

*NOTE:
Fig 1* Fig 2* Mounting arms are
sold separately
Cat. old Fig Mounting Watts volts Lumens Replaces Photocell Weight Case Each
Metal
No. Cat. halide Type (lbs) Qty
71316B 1 Arm/Wall 30W 120-277v 3,120 100W button 2.8 8
71333B 71333 1 Arm/Wall 50W 120-277v 5,350 150W button 2.8 8
71319B 71319A 2 Arm/Wall 80W 120-277v 9,021 250W twist lock 7.4 2
71318B 71318 2 Arm/Wall 120W 120-277v 12,604 400W twist lock 9.6 2
mounts (Sold Separately)
71305B Mounting arm for 30-50W 1
71309B mounting arm for 80-120W 1
LED DriverLess Dusk To Dawn

Fig 1* Fig 2* *NOTE:
Open face Mounting arm IS
sold separately
Cat. Replaces Beam Weight Case
Metal
No. Fig Mounting Watts volts Lumens halide Angle (lbs) Qty Each
71295 1 Arm/Wall 35W 120-277v 3,920 100W 112°h; 115°V 18 6
71296 1 arm/wall 70W 120-277v 7,618 250W 112°h; 115°V 18 6
71297 2 arm/wall 35W 120-277v 3,920 100W 108°h; 105°V 20 6
71298 2 arm/wall 70W 120-277v 7,618 250W 108°h; 105°V 20 6
mounts (Sold Separately)
71294 21” MOunting arm for 35w-70W 20 6
GooseNeck Floods

Available In NOVEMBER

Fig 1 Fig 2 - Driverless

Cat. Old DLC or Color Dimensions (Inches) Case
No. Cat. FIG energy Driverless Color Temp Watts volts Lumens length diameter height Qty Each
star
75118 - 1 ES no Black 3000K 42W 120-277v 3,812 22” 14” 14” 1
75119 - 1 ES no Bronze 3000K 42W 120-277v 3,812 22” 14” 14” 1
75120A 75120 2 DLC yes White 3000K 40W 120-277v 4,800 22” 14” 14” 1
75121 - 1 ES no Black 4000K 42W 120-277v 3,812 22” 14” 14” 1
75122A 75122 2 DLC yes Bronze 4000K 40W 120-277v 4,800 22” 14” 14” 1
75123A 75123 2 DLC yes White 4000K 40W 120-277v 4,800 22” 14” 14” 1
75124 - 1 ES no Black 5000K 42W 120-277v 3,812 22” 14” 14” 1
75125 - 1 ES no Bronze 5000K 42W 120-277v 3,812 22” 14” 14” 1
75126A 75126 2 DLC yes White 5000K 40W 120-277v 4,800 22” 14” 14” 1
Please review online specification sheets. Pictures and certifications may not be 100% representative of the product listed.
To view details of our DLC qualified products, please consult the DLC Qualified Products List at www.designlights.org/qpl
32 FOR MORE INFO SEE THE 2019 LIGHTING Catalog and or visit morrisproducts.com
