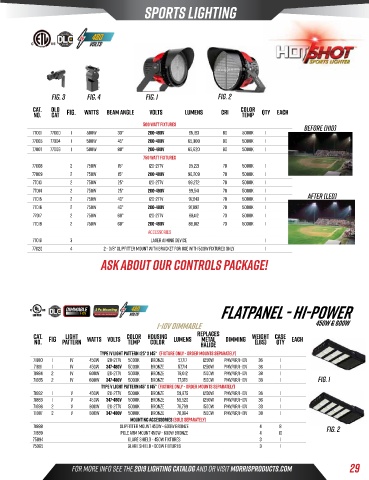

Page 31 - 2020 October Lighting Catalog

Sports Lighting

Fig. 3 Fig. 4 Fig. 1 Fig. 2
Cat. Old FIG. Watts Beam Angle Volts LUMens CRI Color Qty Each
No. Cat Temp

500 Watt fixtures BEFORE (HID)
77001 77000 1 500W 30° 200-480V 65,183 80 5000K 1
77005 77004 1 500W 45° 200-480V 65,300 80 5000K 1
77007 77006 1 500W 80° 200-480V 65,620 80 5000K 1
750 Watt fixtures
77008 2 750W 15° 120-277v 95,221 70 5000K 1
77009 2 750W 15° 200-480V 96,209 70 5000K 1
77013 2 750W 25° 120-277V 99,272 70 5000K 1
77014 2 750W 25° 200-480V 99,541 70 5000K 1
77015 2 750W 40° 120-277V 97,643 70 5000K 1 AFTER (LED)
77016 2 750W 40° 200-480V 97,892 70 5000K 1
77017 2 750W 60° 120-277V 88,412 70 5000K 1
77018 2 750W 60° 200-480V 89,012 70 5000K 1
ACCESSORIES
77019 3 Laser Aiming Device 1
77020 4 2 - 3/8” Slipfitter Mount with Bracket For use with 500W fixtures only 1
Ask about our Controls Package!

FlatPanel - Hi-Power
Dimmable
1-10V
1-10V Dimmable 450W & 600W

Cat. FIG Light Color Housing Replaces Weight Case
Metal
No. Pattern Watts Volts Temp Color Lumens Halide Dimming (lbs) Qty Each
Type IV Light Pattern 125° X 145° (Fixture Only - Order Mounts Separately)
71880 1 IV 450W 120-277V 5000K Bronze 57,717 1250W PMV/VR/1-10V 36 1
71881 1 IV 450W 347-480V 5000K Bronze 57,714 1250W PMV/VR/1-10V 36 1
71884 2 IV 600W 120-277V 5000K Bronze 78,012 1500W PMV/VR/1-10V 38 1
71885 2 IV 600W 347-480V 5000K Bronze 77,378 1500W PMV/VR/1-10V 38 1 Fig. 1
Type V Light Pattern 145° X 145° (Fixture Only - Order Mounts Separately)
71882 1 V 450W 120-277V 5000K Bronze 59,675 1250W PMV/VR/1-10V 36 1
71883 1 V 450W 347-480V 5000K Bronze 59,520 1250W PMV/VR/1-10V 36 1
71886 2 V 600W 120-277V 5000K Bronze 78,799 1500W PMV/VR/1-10V 38 1
71887 2 V 600W 347-480V 5000K Bronze 78,394 1500W PMV/VR/1-10V 38 1
Mounting Accessories (Sold Separately)
71888 Slipfitter Mount 450W - 600W Bronze 4 8 Fig. 2
71889 Pole Arm Mount 450W - 600W Bronze 4 10
75094 Glare Shield - 450W Fixtures 3 1
75095 Glare Shield - 600W Fixtures 3 1

FOR MORE INFO SEE THE 2019 LIGHTING Catalog and or visit morrisproducts.com 29
