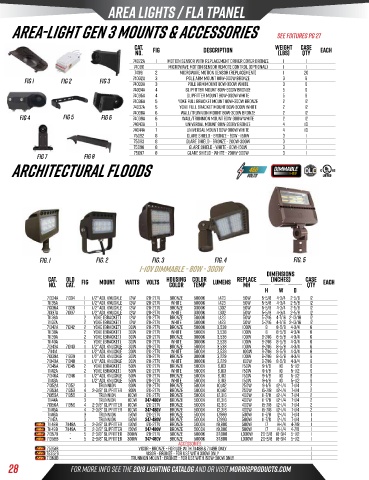

Page 30 - 2020 October Lighting Catalog

AREA LIGHTS / Fla tpanel

Area-Light Gen 3 Mounts & Accessories See Fixtures Pg 27

Cat. Weight Case
No. Fig description (lbs) Qty Each
74072A 1 Motion Sensor with Replacement Driver Cover Bronze 1 1
74090 microwave Motion Sensor remote control (optional) 1 1
74091 2 Microwave Motion Sensor (replacement) 1 20
Fig 1 Fig 2 Fig 3 74032A 3 3 Pole Arm Mount 80W-300W Bronze 3 3 6 6
Pole Arm Mount 80W-300W White
74033A
74034A 4 Slipfitter Mount 80W-300W Bronze 5 6
74035A 4 Slipfitter Mount 80W-300W White 5 6
74036A 5 Yoke Full Bracket Mount 80W-300W Bronze 2 12
74037A 5 Yoke Full Bracket Mount 80W-300W White 2 12
74038A 6 WALL/Trunnion Mount 80W-300W Bronze 2 12
Fig 4 Fig 5 Fig 6 74039A 6 Wall/Trunnion Mount 80W-300W White 2 12
74043A 7 Universal mount 80W-300w Bronze 4 10
74044A 7 Universal Mount 80w-300w White 4 10
75092 8 Glare Shield - Bronze - 80W - 150W 3 1
75093 8 Glare Shield - Bronze - 200w-300W 3 1
75096 8 Glare Shield - White - 80W-150W 3 1
Fig 7 Fig 8 75097 8 Glare Shield - White - 200W-300W 3 1
Architectural Floods Dimmable

1-10V

Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5
1-10V Dimmable - 80W - 300W
(inches)
Cat. Old fig Mount Watts Volts Housing Color Lumens Replace dimensions Case Each
No. Cat. Color Temp MH Qty
h w D
71334A 71334 1 1/2" Adj. Knuckle 12W 120-277V Bronze 5000K 1,423 50W 5-5/8 4-3/4 2-5/8 12
71135A 1 1/2" Adj. Knuckle 12W 120-277V White 5000K 1,423 50W 5-5/8 4-3/4 2-5/8 12
71336A 71336 1 1/2" Adj. Knuckle 12W 120-277V Bronze 3000K 1,302 50W 5-5/8 4-3/4 2-5/8 12
71337A 71337 1 1/2" Adj. Knuckle 12W 120-277V White 3000K 1,302 50W 5-5/8 4-3/4 2-5/8 12
71136A 2 Yoke (Bracket) 12W 120-277V Bronze 5000K 1,423 50W 5-7/16 4-7/16 2-13/16 12
71137A 2 Yoke (Bracket) 12W 120-277V White 5000K 1,423 50W 5-7/16 4-7/16 2-13/16 12
71342A 71342 2 Yoke (Bracket) 30W 120-277V Bronze 5000K 3,538 100W 8 8-5/8 4-3/4 6
71138A 2 Yoke (Bracket) 30W 120-277V White 5000K 3,538 100W 8 8-5/8 4-3/4 6
71139A 2 Yoke (Bracket) 30W 120-277V Bronze 3000K 3,538 100W 9-7/16 8-5/8 4-3/4 6
71140A 2 Yoke (Bracket) 30W 120-277V White 3000K 3,538 100W 9-7/16 8-5/8 4-3/4 6
71343A 71343 1 1/2" Adj. Knuckle 30W 120-277V Bronze 5000K 3,538 100W 9-7/16 8-5/8 4-3/4 6
71141A 1 1/2" Adj. Knuckle 30W 120-277V White 5000K 3,538 100W 9-7/16 8-5/8 4-3/4 6
71339A 71339 1 1/2" Adj. Knuckle 30W 120-277V Bronze 3000K 3,229 100W 9-7/16 8-5/8 4-3/4 6
71340A 71340 1 1/2" Adj. Knuckle 30W 120-277V White 3000K 3,229 100W 9-7/16 8-5/8 4-3/4 6
71345A 71345 2 Yoke (Bracket) 50W 120-277V Bronze 5000K 6,103 150W 9-1/8 10 5-1/2 6
71142A 2 Yoke (Bracket) 50W 120-277V White 5000K 6,103 150W 9-1/8 10 5-1/2 6
71346A 71346 1 1/2" Adj. Knuckle 50W 120-277V Bronze 5000K 6,103 150W 9-1/8 10 5-1/2 6
71143A 1 1/2" Adj. Knuckle 50W 120-277V White 5000K 6,103 150W 9-1/8 10 5-1/2 6
71352A 71352 3 Trunnion 80W 120-277V Bronze 5000K 10,142 250W 9-1/8 12-1/4 7-1/4 2
71353A 71353 4 2-3/8” Slipfitter 80W 120-277V Bronze 5000K 10,142 250W 15-7/8 12-1/4 7-1/4 2
71355A 71355 3 Trunnion 100W 120-277V Bronze 5000K 12,316 400W 11-7/8 12-1/4 7-1/4 2
71144A 3 Trunnion 100W 347-480V Bronze 5000K 12,316 400W 11-7/8 12-1/4 7-1/4 2
71356A 71356 4 2-3/8” Slipfitter 100W 120-277V Bronze 5000K 12,316 400W 15-7/8 12-1/4 7-1/4 2
71145A 4 2-3/8” Slipfitter 100W 347-480V Bronze 5000K 12,316 400W 15-7/8 12-1/4 7-1/4 2
71146A 3 Trunnion 150W 120-277V Bronze 5000K 17,993 500W 11-7/8 12-1/4 7-1/4 1
71147A 3 Trunnion 150W 347-480V Bronze 5000K 17,993 500W 11-7/8 12-1/4 7-1/4 1
71148b 71148A 5 2-3/8” Slipfitter 150W 120-277V Bronze 5000K 19,800 500W 17 14-1/4 4-7/8 1
71149b 71149A 5 2-3/8” Slipfitter 150W 347-480V Bronze 5000K 19,800 500W 17 14-1/4 4-7/8 1
71357B - 5 2-3/8” Slipfitter 300w 120-277V Bronze 5000K 37,800 1,000W 20-3/8 18-3/4 5-1/2 1
71358b - 5 2-3/8” Slipfitter 300w 347-480V Bronze 5000K 37,800 1,000W 20-3/8 18-3/4 5-1/2 1
ACCEssories
75351b VISOR - BRONZE - For use with 71148B & 71149B ONly 1
75352b VISOR - BRONZE - for use with 300W only 1
71360b TRUNNION MOUNT - BRONZE - for use with 150W-300W only 1
28 FOR MORE INFO SEE THE 2019 LIGHTING Catalog and or visit morrisproducts.com
