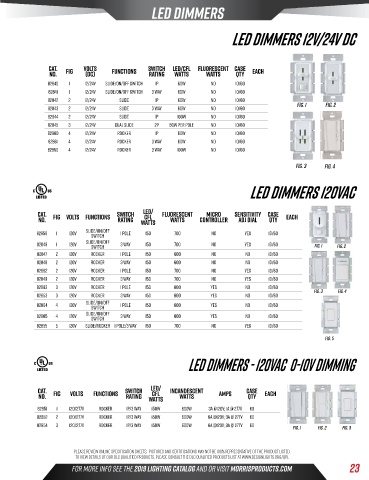

Page 25 - 2020 October Lighting Catalog

LED DIMMERS

LED Dimmers 12V/24V DC

Cat. Volts Switch LED/CFL Fluorescent Case
No. FIG (DC) Functions Rating Watts Watts Qty Each
82840 1 12/24V SLIDE/On/Off Switch 1P 60W No 10/60
82841 1 12/24V SLIDE/On/Off Switch 3 Way 60W No 10/60
82842 2 12/24V SLIDE 1P 60W No 10/60
82843 2 12/24V SLIDE 3 Way 60W No 10/60 Fig. 1 Fig. 2
82844 2 12/24V SLIDE 1P 100W No 10/60
82845 3 12/24V Dual Slide 2P 60W per pole No 10/60
82860 4 12/24v rocker 1p 60W no 10/60
82861 4 12/24v rocker 3 way 60W no 10/60
82850 4 12/24V ROCKER 3 WAY 100W NO 10/60

Fig. 3 Fig. 4

LED Dimmers 120VAC

Cat. Fig Volts Functions Switch LED/ Fluorescent Micro Sensitivity Case Each
CFL
No. Rating Watts Watts Controller Adj Dial Qty
82859 1 120v Slide/on/off 1 Pole 150 700 No Yes 10/60
switch
82846 1 120V Slide/On/Off 3 Way 150 700 No Yes 10/60 Fig. 1 Fig. 2
Switch
82847 2 120V Rocker 1 Pole 150 600 No No 10/60
82848 2 120V Rocker 3 Way 150 600 No NO 10/60
82862 2 120V Rocker 1 Pole 150 700 No Yes 10/60
82849 2 120V Rocker 3 Way 150 700 No Yes 10/60
82863 3 120V Rocker 1 Pole 150 600 Yes No 10/60 Fig. 3 Fig. 4
82853 3 120V Rocker 3 way 150 600 Yes No 10/60
82864 4 120V Slide/on/off 1 Pole 150 600 Yes No 10/60
switch
82865 4 120v Slide/On/Off 3 way 150 600 Yes No 10/60
Switch
82855 5 120v Slide/rocker 1 pole/3 way 150 700 NO Yes 10/60
Fig. 5

LED Dimmers - 120VAC 0-10V Dimming

Cat. FiG Volts Functions Switch LED/ Incandescent Amps Case Each
CFL
No. Rating Watts Watts Qty
82851 1 120/277V Rocker 1P/3 Way 150W 600W 3A @120V; 1A @ 277V 60
82852 2 120/277V Rocker 1P/3 Way 150W 600W 6A @120V; 3A @ 277V 60
82854 3 120/277V Rocker 1P/3 Way 150W 600W 6A @120V; 3A @ 277V 60 Fig. 1 Fig. 2 Fig. 3

Please review online specification sheets. Pictures and certifications may not be 100% representative of the product listed.
To view details of our DLC qualified products, please consult the DLC Qualified Products List at www.designlights.org/qpl
FOR MORE INFO SEE THE 2019 LIGHTING Catalog and or visit morrisproducts.com 23
