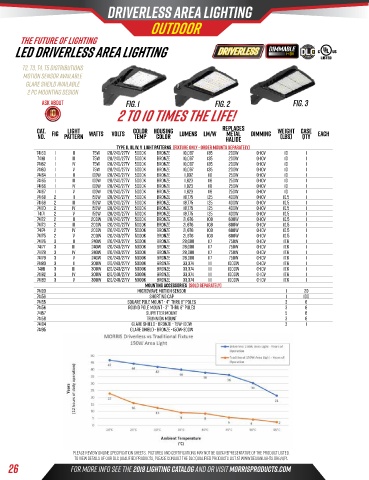

Page 28 - 2020 October Lighting Catalog

DRIVERLESS AREA LIGHTING
OUTDOOR

THE FUTURE OF LIGHTING
LED Driverless Area Lighting Dimmable
1-10V

t2, T3, t4, t5 distributions
motion sensor available
glare sheild available
2 pc mounting design
ASK ABOUT Fig. 1 Fig. 2 Fig. 3
2 TO 10 TIMES THE LIFE!

Cat. Fig Light Watts volts Color Housing Lumens Lm/w Replaces Dimming Weight Case Each
Metal
No. Pattern Temp Color Halide (lbs) Qty
Type II, III, IV, V Light Patterns (Fixture Only - Order Mounts Separately)
74160 1 II 75W 120/240/277V 5000K Bronze 10,087 135 200W 0-10V 10 1
74161 1 III 75W 120/240/277V 5000K Bronze 10,087 135 200W 0-10V 10 1
74162 1 IV 75W 120/240/277V 5000K Bronze 10,087 135 200W 0-10V 10 1
74163 1 V 75W 120/240/277V 5000K Bronze 10,087 135 200W 0-10V 10 1
74164 1 Ii 100W 120/240/277V 5000K Bronze 11,832 118 250W 0-10V 10 1
74165 1 III 100W 120/240/277V 5000K Bronze 11,823 118 250W 0-10V 10 1
74166 1 IV 100W 120/240/277V 5000K Bronze 11,823 118 250W 0-10V 10 1
74167 1 V 100W 120/240/277V 5000K Bronze 11,823 118 250W 0-10V 10 1
74168 2 1I 150W 120/240/277V 5000K Bronze 18,775 125 400W 0-10V 10.5 1
74169 2 III 150W 120/240/277V 5000K Bronze 18,775 125 400W 0-10V 10.5 1
74170 2 IV 150W 120/240/277V 5000K Bronze 18,775 125 400W 0-10V 10.5 1
74171 2 V 150W 120/240/277V 5000K Bronze 18,775 125 400W 0-10V 10.5 1
74172 2 II 200W 120/240/277V 5000K Bronze 21,676 108 600w 0-10V 10.5 1
74173 2 iii 200W 120/240/277V 5000K Bronze 21,676 108 600w 0-10V 10.5 1
74174 2 IV 200W 120/240/277V 5000K Bronze 21,676 108 600w 0-10V 10.5 1
74175 2 V 200W 120/240/277V 5000K Bronze 21,676 108 600w 0-10V 10.5 1
74176 3 Ii 240W 120/240/277V 5000K Bronze 28,080 117 750w 0-10V 17.6 1
74177 3 III 240W 120/240/277V 5000K Bronze 28,080 117 750w 0-10V 17.6 1
74178 3 IV 240W 120/240/277V 5000K Bronze 28,080 117 750w 0-10V 17.6 1
74179 3 V 240W 120/240/277V 5000K Bronze 28,080 117 750w 0-10V 17.6 1
74180 3 1I 300W 120/240/277V 5000K Bronze 33,374 111 1000W 0-10V 17.6 1
74181 3 Iii 300W 120/240/277V 5000K Bronze 33,374 111 1000W 0-10V 17.6 1
74182 3 IV 300W 120/240/277V 5000K Bronze 33,374 111 1000W 0-10V 17.6 1
74183 3 V 300W 120/240/277V 5000K Bronze 33,374 111 1000W 0-10V 17.6 1
Mounting Accessories (Sold Separately)
74193 Microwave Motion Sensor 1 20
74159 Shorting cap 1 100
74155 Square Pole Mount - 4” Thru 6” Poles 3 6
74156 Round Pole Mount - 3” Thru 6” Poles 3 6
74157 Slipfitter Mount 5 6
74158 Trunnion Mount 3 6
74194 Glare Shield - Bronze - 75W-100W 3 1
74195 Glare Shield - Bronze - 150W-300W

Please review online specification sheets. Pictures and certifications may not be 100% representative of the product listed.
To view details of our DLC qualified products, please consult the DLC Qualified Products List at www.designlights.org/qpl
26 FOR MORE INFO SEE THE 2019 LIGHTING Catalog and or visit morrisproducts.com
