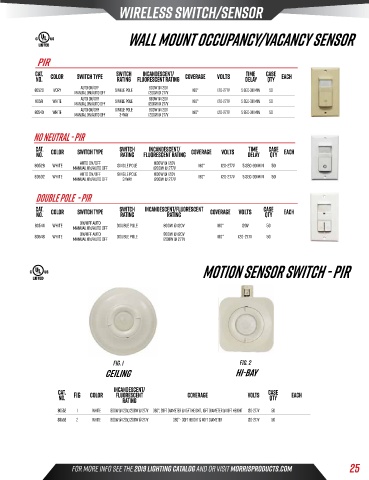

Page 27 - 2020 October Lighting Catalog

wireless switch/sensor

Wall Mount Occupancy/Vacancy Sensor

PIR

Cat. Color Switch Type Switch Incandescent/ Coverage Volts Time Case EACH
No. Rating Fluorescent Rating Delay Qty
800W @ 120V
Auto On/Off
80520 Ivory Manual On/Auto Off Single Pole 1200W @ 277V 180° 120-277V 5 Sec-30 Min 50
Auto On/Off
800W @ 120V
80521 White Manual On/Auto Off Single Pole 1200W @ 277V 180° 120-277V 5 Sec-30 Min 50
Auto On/Off
800W @ 120V
80540 White Manual On/Auto Off Single Pole 1200W @ 277V 180° 120-277V 5 Sec-30 Min 50
3-Way
No Neutral - PIR

Cat. Color Switch Type Switch Incandescent/ Coverage Volts Time Case EACH
No. Rating Fluorescent Rating Delay Qty
800W @ 120V
Auto On/Off
80528 White Manual On/Auto Off Single Pole 1200W @ 277V 180° 120-277v 5 Sec-30 Min 50
Auto On/Off
800W @ 120V
80532 White Manual On/Auto Off Single Pole 1200W @ 277V 180° 120-277v 5 Sec-30 Min 50
3 Way
Double Pole - PIR

Cat. Switch Incandescent/Fluorescent Case
No. Color Switch Type Rating Rating Coverage Volts Qty EACH
On/Off Auto
80544 White Manual On/Auto Off Double Pole 800W @ 120V 180° 120V 50
800W @ 120V
On/Off Auto
80548 White Manual On/Auto Off Double Pole 1200W @ 277V 180° 120-277v 50

Motion Sensor Switch - PIR

Fig. 1 Fig. 2
Ceiling Hi-Bay

Cat. FIG Incandescent/ Case
No. Color Fluorescent Coverage Volts Qty each
Rating
80552 1 White 800W @ 120V, 1200W @ 277V 360°, 20Ft Diameter @ 15Ft Height, 15Ft Diameter @ 10Ft Height 120-277v 50
80556 2 White 800W @ 120V, 1200W @ 277V 360° - 30Ft Height & 40Ft Diameter 120-277v 50

FOR MORE INFO SEE THE 2019 LIGHTING Catalog and or visit morrisproducts.com 25
