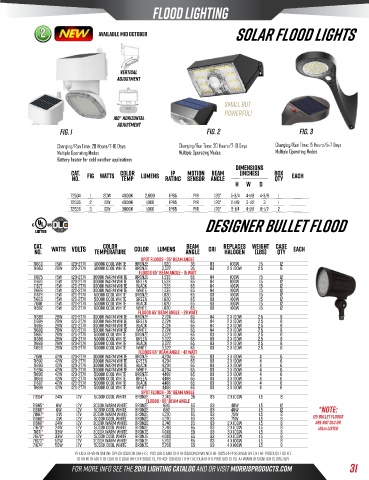

Page 33 - 2020 October Lighting Catalog

Flood lighting

solar flood lights
Available MID OCTOBER

vertical
adjustment

small but
powerful!
180° Horizontal
adjustment
Fig. 1 Fig. 2 Fig. 3

Charging/Run Time: 20 Hours/7-10 Days Charging/Run Time: 20 Hours/7-10 Days Charging/Run Time: 15 Hours/5-7 Days
Multiple Operating Modes Multiple Operating Modes Multiple Operating Modes
Battery heater for cold weather applications
Dimensions
Cat. fig Watts Color Lumens IP Motion Beam (Inches) box Each
No. Temp rating Sensor Angle Qty
H W D
72534 1 20w 4000K 2,000 ip65 PIR 120° 5-3/4 4-1/8 4-3/8 1
72535 2 10W 4000K 1,000 ip65 PIR 120° 2-1/8 3-1/2 3 1
72536 3 10W 3000K 1,000 ip65 PIR 120° 5-1/4 4-1/8 8-1/2 2
Designer Bullet Flood

Cat. Watts VOLTS Color Color Lumens Beam CRI Replaces Weight Case Each
No. Temperature Angle Halogen (Lbs) Qty
Spot Floods - 35° Beam Angle
71660 15W 120-277v 5000K Cool White Bronze 1,620 35 83 100W 1.5 12
71663 28W 120-277v 5000K Cool White Bronze 3,022 35 83 2 X 100W 2.5 8
Floods 65° Beam Angle - 15 Watt
71675 15W 120-277v 3000K Warm White Bronze 1,536 65 84 100W 1.5 12
71676 15W 120-277v 3000K Warm White Green 1,536 65 84 100W 1.5 12
71677 15W 120-277v 3000K Warm White Black 1,536 65 84 100W 1.5 12
71678 15W 120-277v 3000K Warm White White 1,536 65 84 100W 1.5 12
71679 15W 120-277v 5000K Cool White Bronze 1,620 65 83 100W 1.5 12
71680 15W 120-277v 5000K Cool White Green 1,620 65 83 100W 1.5 12
100W
83
12
1.5
65
5000K Cool White
120-277v
1,620
Black
71681
15W
71682 15W 120-277v 5000K Cool White White 1,620 65 83 100W 1.5 12
Floods 65° Beam Angle - 28 Watt
71683 28W 120-277v 3000K Warm White Bronze 2,724 65 84 2 X 100W 2.5 8
71684 28W 120-277v 3000K Warm White Green 2,724 65 84 2 X 100W 2.5 8
71685 28W 120-277v 3000K Warm White Black 2,724 65 84 2 X 100W 2.5 8
71686 28W 120-277v 3000K Warm White White 2,724 65 84 2 X 100W 2.5 8
71687 28W 120-277v 5000K Cool White Bronze 3,022 65 83 2 X 100W 2.5 8
71688 28W 120-277v 5000K Cool White Green 3,022 65 83 2 X 100W 2.5 8
71689 28W 120-277v 5000K Cool White Black 3,022 65 83 2 X 100W 2.5 8
71690 28W 120-277v 5000K Cool White White 3,022 65 83 2 X 100W 2.5 8
Floods 65° Beam Angle - 42 Watt
71691 42W 120-277v 3000K Warm White Bronze 4,204 65 83 3 X 100W 4 6
71692 42W 120-277v 3000K Warm White Green 4,204 65 83 3 X 100W 4 6
71693 42W 120-277v 3000K Warm White Black 4,204 65 83 3 X 100W 4 6
71694 42W 120-277v 3000K Warm White White 4,204 65 83 3 X 100W 4 6
71695 42W 120-277v 5000K Cool White Bronze 4,488 65 83 3 X 100W 4 6
71696 42W 120-277v 5000K Cool White Green 4,488 65 83 3 X 100W 4 6
71697 42W 120-277v 5000K Cool White Black 4,488 65 83 3 X 100W 4 6
71698 42W 120-277v 5000K Cool White White 4,488 65 83 3 X 100W 4 6
Spot Floods - 35° Beam Angle
2,740
71664* 24W 12V 5000K Cool White Bronze Floods - 65° Beam Angle 35 83 2 X 100W 1.5 8
71665* 6W 12V 3000K Warm White Bronze 680 65 83 40W 1.5 12
71666* 6W 12V 5000K Cool White Bronze 680 65 83 40W 1.5 12 *note:
71667* 12W 12V 3000K Warm White Bronze 1,370 65 83 75W 1.5 8
71668* 12W 12V 5000K Cool White Bronze 1,370 65 83 75W 1.5 8 12V Bullet floods
71669* 24W 12V 3000K Warm White Bronze 2,740 65 83 2 X 100W 1.5 8 are not DLC or
71670* 24W 12V 5000K Cool White Bronze 2,740 65 83 2 X 100W 1.5 8 cULus Listed
71671* 33W 12V 3000K Warm White Bronze 4,000 65 83 3 X 100W 1.5 8
71672* 33W 12V 5000K Cool White Bronze 4,000 65 83 3 X 100W 1.5 8
71673* 50W 12V 3000K Warm White Bronze 5,700 65 83 4 X 100W 1.5 8
71674* 50W 12V 5000K Cool White Bronze 5,700 65 83 4 X 100W 1.5 8
Please review online specification sheets. Pictures and certifications may not be 100% representative of the product listed.
To view details of our DLC qualified products, please consult the DLC Qualified Products List at www.designlights.org/qpl
FOR MORE INFO SEE THE 2019 LIGHTING Catalog and or visit morrisproducts.com 31
