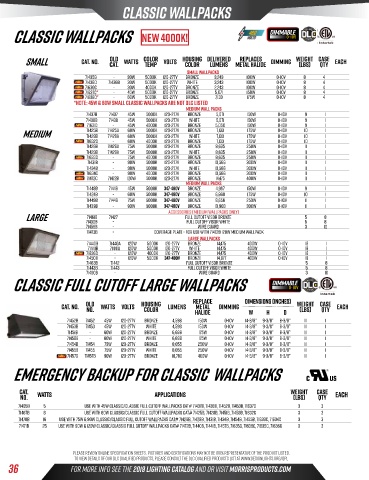

Page 38 - 2020 October Lighting Catalog

classic WALLPACKS

Classic WallPacks NEW 4000k! 0-10V

Replaces
Old
Small Cat. No. Cat. Watts Color Volts Housing Delivered Metal Halide Dimming Weight Case each
Temp
Color
(Lbs)
Qty
Lumens
Small WallPacks
71435B - 30w 5000K 120-277v Bronze 3,243 100W 0-10V 8 4
71436C 71436B 30w 5000K 120-277v White 3,243 100W 0-10V 8 4
71630C - 30w 4000K 120-277V Bronze 2,243 100W 0-10V 8 4
71637C* - 45W 5000K 120-277V Bronze 5,071 150W 0-10V 8 4
71638C* - 60W 5000K 120-277V Bronze 7,133 175W 0-10V 8 4
*NOTE: 45W & 60w Small Classic wallpacks are not dlc listed
Medium Wall Packs
71437B 71437 45w 5000K 120-277v Bronze 5,071 150W 0-10V 9 1
71438B 71438 45w 5000K 120-277v White 5,071 150W 0-10V 9 1
71631c - 45w 4000K 120-277v BRONZE 5,050 150W 0-10V 9 1
Medium 71425B 71425A 60w 5000K 120-277v Bronze 7,133 175W 0-10V 10 1 1
5000K
10
120-277v
71428A
White
7,133
60w
71428B
0-10V
175W
71632C - 60w 4000K 120-277v BRONZE 7,133 175W 0-10V 10 1
71426B 71426A 75w 5000K 120-277v Bronze 8,635 250W 0-10V 11 1
71429B 71429A 75w 5000K 120-277v White 8,635 250W 0-10V 11 1
71633C - 75W 4000K 120-277V BRONZE 8,635 250W 0-10V 11 1
71431B - 90w 5000K 120-277v BRONZE 10,566 300W 0-10V 11 1
71434B - 90w 5000K 120-277v WHITE 10,566 300W 0-10V 11 1
71634C - 90W 4000K 120-277v BRONZE 10,566 300W 0-10V 11 1
71472C 71472B 120w 5000K 120-277V bronze 14,475 400W 0-10v 11 1
Medium Wall Packs
71448B 71448 45w 5000K 347-480v Bronze 4,997 150W 0-10V 9 1
71424B - 60w 5000K 347-480v BRONZE 6,860 175W 0-10V 10 1
71449B 71449 75w 5000K 347-480v Bronze 8,656 250W 0-10V 11 1
71439B - 90w 5000K 347-480v BRONZE 10,903 300W 0-10V 11 1
large 71430B 71427 Accessories (Medium wallpacks only) 5 5 8 8
Full Cutoff Visor Bronze
71461B
Full cutoff visor white
-
71459B - wire guard 3 10
71473B - Coverage Plate - For Use With 71472B 120W Medium WallPack
LArge Wallpacks
71440B 71440A 120w 5000K 120-277v Bronze 14,475 400W 0-10V 18 1
71441B 71441A 120w 5000K 120-277v White 14,475 400W 0-10V 18 1
71636C - 120W 4000K 120-277v BRONZE 14,475 400W 0-10V 18 1
71450B - 120w 5000K 347-480v BRONZE 14,877 400W 0-10V 18 1
71463B 71442 Full Cutoff Visor Bronze 5 8
71443B 71443 Full cutoff visor white 5 8
71460B - wire guard 3 10
Classic Full Cutoff Large WallPacks 0-10V
Cat. No. Old Watts volts Housing Lumens Replace Dimming Dimensions (Inches) Weight Case EACH
Metal
Qty
no.
Color
(Lbs)
Halide
H
W
D
71452B 71452 45w 120-277v Bronze 4,598 150W 0-10V 14-3/8” 9-3/8” 8-3/8” 11 1
71453B 71453 45w 120-277v White 4,598 150W 0-10V 14-3/8” 9-3/8” 8-3/8” 11 1
71451B - 60w 120-277v Bronze 6,698 175W 0-10V 14-3/8” 9-3/8” 8-3/8” 11 1
71458B - 60w 120-277v White 6,698 175W 0-10V 14-3/8” 9-3/8” 8-3/8” 11 1
71454B 71454 75w 120-277v Bronze 8,055 250W 0-10V 14-3/8” 9-3/8” 8-3/8” 11 1
71455B 71455 75w 120-277v White 8,055 250W 0-10V 14-3/8” 9-3/8” 8-3/8” 11 1
71457C 71457B 90w 120-277v Bronze 10,780 400W 0-10V 14-3/8” 9-3/8” 8-3/8” 11 1
Emergency Backup for Classic WallPacks
Cat. Weight Case each
No. Watts Applications (Lbs) Qty
71465B 5 Use with 45W Classic/classic full cutoff WallPacks Cat# 71437B, 71438B, 71452B, 71453B, 71637C 3 3
71467B 8 Use with 60W Classic/classic full cutoff WallPacks Cat# 71425B, 71428B, 71451b, 71458b, 71632C 3 3
71470B 16 Use with 75W & 90W Classic/classic full cutoff WallPacks Cat# 71426B, 71429B, 71431B, 71434b, 71454B, 71455b, 71633C, 71634C 3 3
71471B 25 Use with 90W & 120W Classic/classic full cutoff WallPacks Cat# 71472B, 71440b, 71441b, 71457b, 71635C, 71636C, 71635C, 71636C 3 3
Please review online specification sheets. Pictures and certifications may not be 100% representative of the product listed.
To view details of our DLC qualified products, please consult the DLC Qualified Products List at www.designlights.org/qpl
36 FOR MORE INFO SEE THE 2019 LIGHTING Catalog and or visit morrisproducts.com
