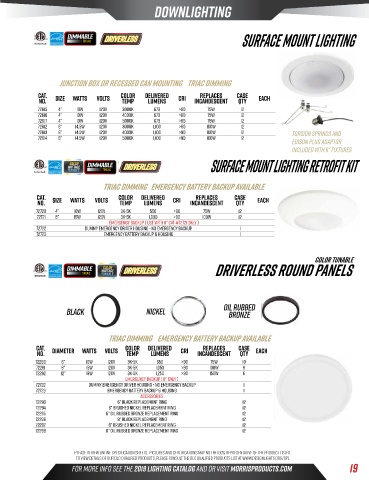

Page 21 - 2020 October Lighting Catalog

Downlighting

Surface Mount Lighting
triac

JUNCTION BOX OR RECESSED CAN MOUNTING triac Dimming
Cat. Color Delivered Replaces Case
No. Size Watts VOLTS Temp Lumens CRI Incandescent Qty Each
72615 4” 10W 120V 3000K 673 >90 75W 12
72616 4” 10W 120V 4000K 673 >90 75W 12
72617 4” 10W 120V 5000K 673 >90 75W 12
72612 6” 14.5W 120V 3000K 1,100 >90 100W 12
72613 6” 14.5W 120V 4000K 1,100 >90 100W 12 torsion springs and
72614 6” 14.5W 120V 5000K 1,100 >90 100W 12
edison plug adaptor
Included wth 6” fixtures
Surface Mount Lighting Retrofit Kit

triac

triac Dimming emergency battery backup available
Cat. Color Delivered Replaces Case
No. Size Watts VOLTS Temp Lumens CRI Incandescent Qty Each
72720 4” 10W 120V 3K-5K 550 >90 75W 12
72721 6” 15W 120V 3K-5K 1,000 >90 100W 12
Emergency Backup ( use with 6” Cat #72721 ONLY )
72722 Dummy Emergency Driver Housing - No Emergency Backup 1
72723 Emergency Battery Backup & Housing 1

Color Tunable
Driverless Round Panels
triac

Black Nickel Oil Rubbed
Bronze

triac Dimming emergency battery backup available
Cat. Diameter Watts volts Color Delivered CRI Replaces Case Each
No. Temp Lumens Incandescent Qty
72290 6” 10W 120V 3K-5K 650 >90 75W 10
72291 8” 15W 120V 3K-5K 1,050 >90 100W 8
72292 12” 18W 120V 3K-5K 1,250 >90 150W 6
Emergency Backup ( 8” ONLY )
72722 Dummy Emergency Driver Housing - No Emergency Backup 1
72723 Emergency Battery Backup & Housing 1
Accessories
72293 6” Black Replacement Ring 12
72294 6” Brushed Nickel Replacement Ring 12
72295 6” Oil Rubbed Bronze Replacement Ring 12
72296 8” Black Replacement Ring 12
72297 8” Brushed Nickel Replacement Ring 12
72298 8” Oil Rubbed Bronze Replacement Ring 12

Please review online specification sheets. Pictures and certifications may not be 100% representative of the product listed.
To view details of our DLC qualified products, please consult the DLC Qualified Products List at www.designlights.org/qpl
FOR MORE INFO SEE THE 2019 LIGHTING Catalog and or visit morrisproducts.com 19
