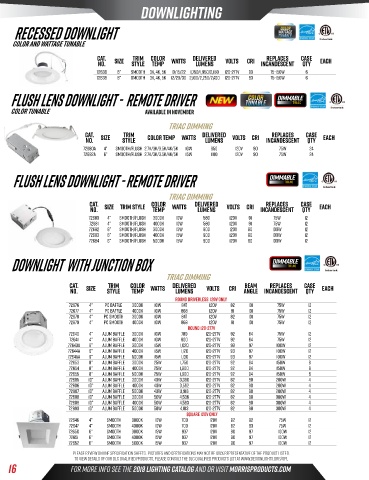

Page 18 - 2020 October Lighting Catalog

DOWNLIGHTing

recessed Downlight

Color and Wattage Tunable

Cat. Trim Color Delivered Replaces Case
No. Size Style Temp Watts Lumens Volts CRI Incandescent Qty Each
72638 6” Smooth 3K, 4K, 5K 10/15/22 1,750/1,950/2,150 120-277V 93 75-150W 6
72639 8” Smooth 3K, 4K, 5K 12/20/30 2,100/2,250/2,400 120-277V 93 75-150W 6

Flush Lens Downlight - remote driver triac

Color Tunable Available In NOVEMBER
triac Dimming
Cat. Trim Delivered Replaces Case
No. Size Style Color Temp Watts Lumens Volts CRI Incandescent Qty Each
72680A 4” SmooTH/Flush 2.7k/3k/3.5k/4k/5k 10W 650 120V 90 75W 24
72682A 6” SmooTH/Flush 2.7k/3k/3.5k/4k/5k 15W 1100 120V 90 75W 24

Flush Lens Downlight - remote driver triac

triac Dimming

Cat. Color Delivered Replaces Case
No. Size Trim Style Temp Watts Lumens Volts CRI Incandescent Qty Each
72680 4” SmooTH/Flush 3000K 10W 580 120V 91 75W 12
72681 4” SmooTH/Flush 4000K 10W 580 120V 91 75W 12
72682 6” SmooTH/Flush 3000K 15W 900 120V 90 100W 12
72683 6” SmooTH/Flush 4000K 15W 900 120V 90 100W 12
72684 6” SmooTH/Flush 5000K 15W 900 120V 90 100W 12

Downlight with junction box triac

TRIAC Dimming
Cat. Trim Color Delivered beam Replaces Case
No. Size Style Temp Watts Lumens Volts CRI angle Incandescent Qty Each
round Driverless 120V only
72676 4” PC Baffle 3000K 10W 847 120V 82 101 75W 12
72677 4” PC Baffle 4000K 10W 868 120V 81 101 75W 12
72678 4” PC Smooth 3000K 10W 847 120V 82 101 75W 12
72679 4” PC Smooth 4000K 10W 868 120V 81 101 75W 12
round 120-277V
72640 4” Alum Baffle 3000K 10W 780 120-277V 92 94 75W 12
72641 4” Alum Baffle 4000K 10W 800 120-277V 92 94 75W 12
72643A 6” Alum Baffle 3000K 15W 1,020 120-277V 93 97 100W 12
72644A 6” Alum Baffle 4000K 15W 1,120 120-277V 93 97 100W 12
72645A 6” Alum Baffle 5000K 15W 1,130 120-277V 93 97 100W 12
72653 8” Alum Baffle 3000K 25W 1,750 120-277V 92 94 150W 6
72654 8” Alum Baffle 4000K 25W 1,900 120-277V 92 94 150W 6
72655 8” Alum Baffle 5000K 25W 1,900 120-277V 92 94 150W 6
72685 10” Alum Baffle 3000K 40W 3,380 120-277V 82 98 200W 4
72686 10” Alum Baffle 4000K 40W 3,592 120-277V 82 98 200W 4
72687 10” Alum Baffle 5000K 40W 3,916 120-277V 82 98 200W 4
72688 10” Alum Baffle 3000K 50W 4,536 120-277V 82 98 300W 4
72689 10” Alum Baffle 4000K 50W 4,583 120-277V 82 98 300W 4
72690 10” Alum Baffle 5000K 50W 4,813 120-277V 82 98 300W 4
square 120V only
72646 4” Smooth 3000K 10W 700 120V 92 92 75W 12
72647 4” Smooth 4000K 10W 700 120V 92 93 75W 12
72650 6” Smooth 3000K 15W 937 120V 90 97 100W 12
72651 6” Smooth 4000K 15W 937 120V 90 97 100W 12
72652 6” Smooth 5000K 15W 937 120V 90 97 100W 12
Please review online specification sheets. Pictures and certifications may not be 100% representative of the product listed.
To view details of our DLC qualified products, please consult the DLC Qualified Products List at www.designlights.org/qpl
16 FOR MORE INFO SEE THE 2019 LIGHTING Catalog and or visit morrisproducts.com
