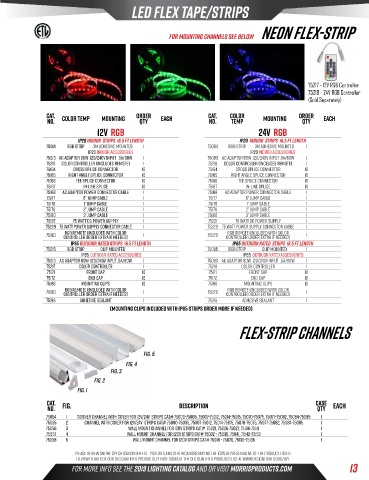

Page 15 - 2020 October Lighting Catalog

LED FLEX TAPE/STRIPS

NEON Flex-Strip
For Mounting Channels see Below

75217 - 12V RGB Controller
75218 - 24V RGB Controller
(Sold Separately)

Cat. Order Cat. Color Order
No. Color Temp Mounting Qty Each No. Temp Mounting Qty Each
12V RGB 24V RGB
IP20 Indoor strips 16.5 Ft Length IP20 Indoor strips 16.5 Ft Length
75014 RGB strip 3M Adhesive mounted 1 75084 RGB strip 3M Adhesive mounted 1
IP20 Indoor Accessories IP20 Indoor Accessories
75013 AC Adaptor 60W 120/240V Input .5A/60W 1 75083 AC Adaptor 60W 120/240V Input .5A/60W 1
75217 Color Controller (includes remote) 1 75218 Color Controller (includes remote) 1
75164 Cross Splice Connector 10 75164 Cross Splice Connector 10
75165 Right Angle Splice Connector 10 75165 Right Angle Splice Connector 10
75166 Tee Splice Connector 10 75166 Tee Splice Connector 10
75167 In-Line Splice 10 75167 In-Line Splice 10
75168 AC ADAPTOR power Connector Cable 1 75168 AC ADAPTOR power Connector Cable 1
75177 6” Jump Cable 1 75177 6” Jump Cable 1
75178 1’ Jump Cable 1 75178 1’ Jump Cable 1
75179 2’ Jump Cable 1 75179 2’ Jump Cable 1
75180 3’ Jump Cable 1 75180 3’ Jump Cable 1
75187 75 Watt dc power supply 1 75221 75 Watt dc power supply 1
75229 75 watt POWER SUPPLY CONNECTOR CABLE 1 75229 75 watt power supply connector cable 1
RGB REMOTE (INCLUDED WITH COLOR
RGB REMOTE (INCLUDED WITH COLOR
75190 CONTROLLER ORDER EXTRA IF NEEDED) 1 75220 CONTROLLER ORDER EXTRA IF NEEDED) 1
IP65 Outdoor Rated Strips 16.5 Ft Length IP65 Outdoor Rated strips 16.5 Ft Length
75015 RGB strip Clip mounted 1 75085 RGB strip Clip mounted 1
IP65 Outdoor Rated Accessories IP65 Outdoor Rated Accessories
75013 AC Adaptor 60W 120/240V Input .5A/60W 1 75083 AC Adaptor 60W 120/240V Input .5A/60W 1
75217 Color Controller 1 75218 Color Controller 1
75171 Front Cap 10 75171 Front Cap 10
75172 End Cap 10 75172 End Cap 10
75186 Mounting Clips 10 75186 Mounting Clips 10
RGB REMOTE (INCLUDED WITH COLOR
RGB REMOTE (INCLUDED WITH COLOR
75190 CONTROLLER ORDER EXTRA IF NEEDED) 1 75220 CONTROLLER ORDER EXTRA IF NEEDED) 1
75216 Adhesive Sealant 1 75216 Adhesive Sealant 1
(MOUNTING CLIPS Included with IP65 strips Order more if needed)

Flex-Strip Channels

fig. 5
fig. 4
fig. 3
fig. 2
fig. 1
Cat. fig. Description Case Each
No. Qty
75054 1 Corner Channel with cover for 12V/24V Strips Cat# 75000-75005, 75007-75012, 75014-75015, 75070-75075, 75077-75082, 75084-75085 1
75055 2 Channel with cover for 12V/24V Strips Cat# 75000-75005, 75007-75012, 75014-75015, 75070-75075, 75077-75082, 75084-75085 1
75056 3 Wall Mount Channel for 120V Strips Cat# 75021, 75026-75027, 75136-75141 1
75057 4 Wall Mount Channel for 120V Strips Cat# 75032 - 75036, 75041, 75142-75153 1
75058 5 Wall Mount Channel for 120V Strips Cat# 75018 - 75020, 75130-75135 1

Please review online specification sheets. Pictures and certifications may not be 100% representative of the product listed.
To view details of our DLC qualified products, please consult the DLC Qualified Products List at www.designlights.org/qpl
FOR MORE INFO SEE THE 2019 LIGHTING Catalog and or visit morrisproducts.com 13
