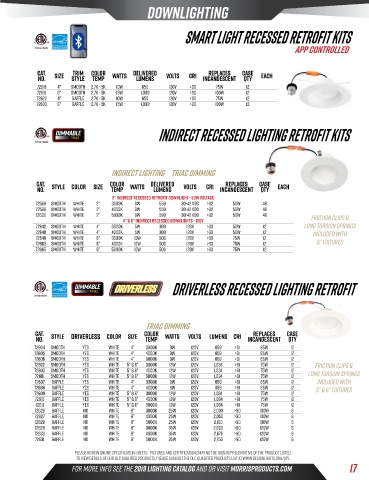

Page 19 - 2020 October Lighting Catalog

Downlighting

SMART Light Recessed Retrofit Kits

App Controlled

Cat. Trim Color Delivered Replaces Case
No. Size Style Temp Watts Lumens Volts CRI Incandescent Qty Each
72618 4” Smooth 2.7K - 5K 10W 650 120V >90 75W 12
72619 6” Smooth 2.7K - 5K 15W 1,000 120V >90 100W 12
72622 4” Baffle 2.7K - 5K 10W 650 120V >90 75W 12
72633 6” Baffle 2.7K - 5K 15W 1,000 120V >90 100W 12

Indirect Recessed Lighting Retrofit Kits

triac

Indirect Lighting triac Dimming
Cat. Color Delivered Replaces Case
No. Style Color Size Temp Watts Lumens Volts CRI Incandescent Qty Each
2” Indirect Recessed Retrofit Downlight - Low Voltage
72598 Smooth White 2” 3000K 9W 550 30-42 VDC >92 50W 48
72599 Smooth White 2” 4000K 9W 550 30-42 vdc >92 50W 48
72600 Smooth White 2” 5000K 9W 550 30-42 VDC >92 50W 48 friction clips &
4” & 6” indirect Recessed Downlights - 120V
72642 Smooth White 4” 3000K 5W 300 120v >93 50W 12 long torsion springs
72648 Smooth White 4” 4000K 5W 300 120v >93 50W 12 included with
72649 Smooth White 6” 3000K 10W 500 120v >93 75W 12
72663 Smooth White 6” 4000K 10W 500 120v >93 75W 12 6” fixtures
72665 Smooth White 6” 5000K 10W 500 120v >93 75W 12

Driverless Recessed Lighting Retrofit

triac

triac Dimming
Cat. Color Replaces Case
No. Style driverless Color Size Temp Watts volts Lumens CRI Incandescent Qty
72604 Smooth yes White 4” 3000K 9W 120V 659 >91 65W 12
72605 Smooth yes White 4” 4000K 9W 120V 659 >91 65W 12
72606 Smooth yes White 4” 5000K 9W 120V 659 >91 65W 12
72602 Smooth yes White 5” & 6” 3000K 12W 120V 1,034 >91 75W 12 friction clips &
72603 Smooth yes White 5” & 6” 4000K 12W 120V 1,034 >91 75W 12
72601 Smooth yes White 5” & 6” 5000K 12W 120V 1,034 >91 75W 12 long torsion springs
72607 Baffle yes White 4” 3000K 9W 120V 659 >91 65W 12 included with
72608 Baffle yes White 4” 4000K 9W 120V 659 >91 65W 12 5” & 6” fixtures
72609 Baffle yes White 5” & 6” 3000K 12W 120V 1,034 >91 75W 12
72610 Baffle yes White 5” & 6” 4000K 12W 120V 1,034 >91 75W 12
72611 Baffle yes White 5” & 6” 5000K 12W 120V 1,034 >91 75W 12
72626 Baffle No White 8” 3000K 25W 120V 2,000 >90 100W 6
72627 Baffle No White 8” 4000K 25W 120V 2,050 >90 100W 6
72628 Baffle No White 8” 5000K 25W 120V 2,100 >90 100W 6
72629 Baffle No White 8” 3000K 35W 120V 2,600 >90 120W 6
72630 Baffle No White 8” 4000K 35W 120V 2,675 >90 120W 6
72631 Baffle No White 8” 5000K 35W 120V 2,750 >90 120W 6

Please review online specification sheets. Pictures and certifications may not be 100% representative of the product listed.
To view details of our DLC qualified products, please consult the DLC Qualified Products List at www.designlights.org/qpl
FOR MORE INFO SEE THE 2019 LIGHTING Catalog and or visit morrisproducts.com 17
