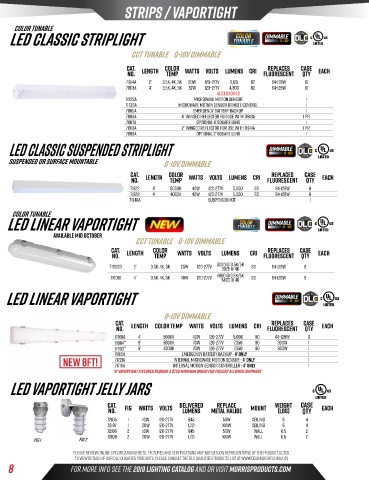

Page 10 - 2020 October Lighting Catalog

Strips / vaportight

Color Tunable
LED classic StripLight 0-10V

CCT Tunable 0-10V Dimmable

Cat. Length Color Watts volts Lumens CRI Replaces Case Each
No. Temp Fluorescent Qty
71914A 2’ 3.5K, 4K, 5K 20W 120-277V 3,125 82 64-128W 10
71913A 4’ 3.5K, 4K, 5K 32W 120-277V 4,300 82 64-128W 10
Accessories
71729A Microwave motion sensor 1
71736A microwave motion sensor remote control 1
71915A Emergency Battery Backup 1
71916A 4’ Winged Reflector for use with 71913A 1 Pr
71917A Optional 4’ Square lens 1
71918A 2’ Winged Reflector for use with 71914A 1 Pr
71919A OPtional 2’ Square lens 1
LED Classic suspended StripLight 0-10V

suspended or surface mountable 0-10V Dimmable

Cat. Color Replaces Case
No. Length Temp Watts volts Lumens CRI Fluorescent Qty Each
71922 4’ 5000K 40W 120-277V 5,000 80 64-128W 6
71923 4’ 4000K 40W 120-277V 5,000 80 64-128W 6
71948A Suspension Kit 1

Color Tunable
LED Linear VaporTight 0-10V

Available MID OCTOBER
CCT Tunable 0-10V Dimmable
Cat. Length Color Watts volts Lumens CRI Replaces Case Each
No. Temp Fluorescent Qty

71900B 2’ 3.5K, 4K, 5K 25W 120-277V 3000 @ 3.5K/5K 80 64-128W 6
3375 @ 4K
71901B 4’ 3.5K, 4K, 5K 40W 120-277V 4800 @ 3.5K/5K 80 64-128W 6
5400 @ 4K
LED Linear VaporTight 0-10V

0-10V Dimmable
Cat. Replaces Case
No. Length Color Temp Watts volts Lumens CRI Fluorescent Qty Each
71901A 4’ 5000K 40W 120-277V 5,000 80 64-128W 6
71904* 8’ 5000K 70W 120-277V 7,350 80 300W 1
71903* 8’ 4000K Emergency Battery Backup - 4’ only 80 300W 1 1
7,350
70W
120-277V
71915A
NEW 8Ft! 71721A Internal motion sensor controller - 4’ only 1 1
Internal Microwave Motion Sensor - 4’ only
71719A
*8’ vaportight fixtures require a $750 minimum order for freight allowed shipment
LED VaporTight Jelly Jars

Cat. Delivered Replace Weight Case
No. Fig Watts volts Lumens Metal Halide Mount (Lbs) Qty Each
72105 1 10W 120-277V 845 50W Ceiling 6 4
72107 1 20W 120-277V 1,721 100W Ceiling 6 4
72106 2 10W 120-277V 845 50W Wall 6.5 2
Fig 1 Fig 2 72108 2 20W 120-277V 1,721 100W Wall 6.5 2

Please review online specification sheets. Pictures and certifications may not be 100% representative of the product listed.
To view details of our DLC qualified products, please consult the DLC Qualified Products List at www.designlights.org/qpl
8 FOR MORE INFO SEE THE 2019 LIGHTING Catalog and or visit morrisproducts.com
