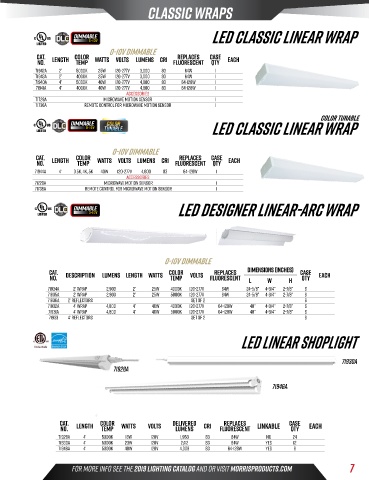

Page 9 - 2020 October Lighting Catalog

classic Wraps

LED Classic Linear Wrap

0-10V
0-10V Dimmable
Cat. Color Replaces Case
No. Length Temp Watts volts Lumens CRI Fluorescent Qty Each
71942A 2’ 5000K 25W 120-277V 3,000 83 64W 1
71943A 2’ 4000K 25W 120-277V 3,000 83 64W 1
71940A 4’ 5000K 40W 120-277V 4,800 83 64-128W 1
71941A 4’ 4000K 40W 120-277V 4,800 83 64-128W 1
accessories
71729A microwave motion sensor 1
71736A Remote Control for Microwave motion sensor 1
Color Tunable
LED Classic Linear Wrap
0-10V

0-10V Dimmable
Cat. Color Replaces Case
No. Length Temp Watts volts Lumens CRI Fluorescent Qty Each
71944A 4’ 3.5K, 4K, 5K 40W 120-277V 4,800 83 64-128W 1
accessories
71729A microwave motion Sensor 1
71736A Remote control for microwave motion sensor 1
LED Designer Linear-Arc Wrap

0-10V

0-10V Dimmable

Cat. Description Lumens Length Watts Color Volts Replaces Dimensions (Inches) Case Each
No. Temp Fluorescent L W H Qty
71934A 2’ Wrap 2,903 2’ 25W 4000K 120-277V 64W 24-5/8” 4-3/4” 2-7/8” 6
71935A 2’ Wrap 2,903 2’ 25W 5000K 120-277V 64W 24-5/8” 4-3/4” 2-7/8” 6
71936A 2’ Reflectors SET OF 2 6
71932A 4’ Wrap 4,800 4’ 40W 4000K 120-277V 64-128W 48” 4-3/4” 2-7/8” 6
71931A 4’ Wrap 4,800 4’ 40W 5000K 120-277V 64-128W 48” 4-3/4” 2-7/8” 6
71933 4’ Reflectors SET OF 2 6

LED Linear Shoplight

71930A
71928A

71946A

Cat. Color Delivered Replaces LINKABLE Case Each
No. length Temp Watts volts Lumens CRI Fluorescent Qty
71928A 4’ 5000K 18W 120V 1,953 83 64W No 24
71930A 4’ 5000K 23W 120V 2,412 83 64W YES 12
71946A 4’ 5000K 40W 120V 4,006 83 64-128W YES 8

FOR MORE INFO SEE THE 2019 LIGHTING Catalog and or visit morrisproducts.com 7
