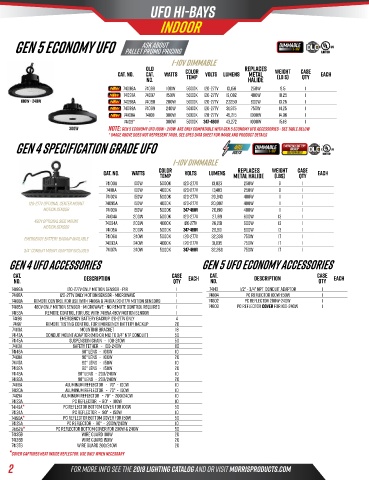

Page 4 - 2020 October Lighting Catalog

UFO HI-BAYS
INDOOR

Gen 5 Economy UFO pallet promo pricing Dimmable
ask about
1-10V
1-10V Dimmable
Old Color Replaces Weight Case
Cat. No. Cat. Watts Temp Volts Lumens Metal (LB S) Qty Each
No. Halide
74096A 74096 100W 5000k 120-277V 13,156 250w 9.5 1
74097A 74097 150W 5000K 120-277V 19,082 400w 10.25 1
100W - 240W 74098A 74098 200W 5000K 120-277V 27,250 600w 13.25 1
74099A 74099 240W 5000K 120-277V 31,975 750w 14.25 1
74108A 74108 300W 5000K 120-277V 45,215 1000W 14.96 1
74109* - 300W 5000K 347-480V 43,272 1000W 15.18 1
300W NOTE: GeN 5 Economy UFO 100W - 240W are only compatable with Gen 5 economy ufo accessories - See table below
* Image above does not represent 74109. See spec data sheet for image and product details
Gen 4 Specification Grade UFO Dimmable
1-10V
1-10V Dimmable
Replaces
Cat. No. Watts Color Volts Lumens Metal Halide Weight Case Each
Temp
(LBS)
Qty
74100A 100W 5000k 120-277V 13,823 250w 9 1
74101A 100W 4000k 120-277V 13,483 250w 9 1
74102A 150W 5000k 120-277V 20,843 400w 11 1
120-277V Optional center mount 74095A 150W 4000k 120-277V 20,092 400w 11 1
motion sensor 74103A 150W 5000k 347-480V 20,190 400w 11 1
74104A 200W 5000k 120-277V 27,199 600w 13 1
480V Optional side mount 74094A 200W 4000k 120-277V 26,251 600w 13 1
motion sensor
74105A 200W 5000k 347-480V 26,901 600w 13 1
Emergency battery Backup available 74106A 240W 5000k 120-277V 32,338 750w 17 1
74093A 240W 4000k 120-277V 31,835 750w 17 1
3/4” Conduit Mount Adaptor Included 74107A 240W 5000k 347-480V 32,266 750w 17 1
Gen 4 UFO Accessories Gen 5 UFO Economy Accessories

Cat. Case Cat. Case
No. Description Qty each No. Description Qty each
74186A 120-277V Only Motion Sensor - PIR 1 74143 1/2” - 3/4” NPT conduit adaptor 1
74187A 120-277V Only Motion Sensor - Microwave 1 74804 PC Reflector 100W-150W 1
74188A Remote Control for use with 74186A & 74187A 120-277V Motion Sensors 1 74802 PC Reflector 200W-240W 1
74185A 480v only Motion sensor - microwave - No Remote Control required 1 74803 pc reflector Cover for 100-240W 1
74153A Remote Control for use with 74185A 480V Motion Sensor 1
74196 Emergency Battery Backup 120-277v only 4
74197 Remote testing control for emergency battery backup 20
74110A Mounting Bracket 18
74143A CONDUIT MOUNT Adaptor (M10 or m12 to 3/4” nTP conduit) 50
74145A suspension Chain - 100-240W 50
74113A Safety Tether - 100-240W 80
74146A 60° lens - 100W 10
74131A 90° lens - 100W 20
74147A 60° lens - 150W 10
74132A 90° lens - 150W 20
74148A 60° lens - 200/240W 10
74133A 90° lens - 200/240W 20
74119A Aluminum Reflector - 70° - 100W 10
74120A Aluminum Reflector - 70° - 150W 10
74121A Aluminum Reflector - 70° - 200/240W 10
74123A PC Reflector - 90° - 100W 10
74149A* PC Reflector bottom cover for 100W 50
74124A PC Reflector - 90° - 150W 10
74150A* PC Reflector bottom cover for 150W 50
74125A PC Reflector - 90° - 200W/240W 10
74152A* PC Reflector bottom cover for 200W & 240W 50
74135B WIRE GUARD 100W 20
74136B wire guard 150W 20
74137B wire guard 200/240W 20
*cover captures heat inside reflector. use only when necessary
2 FOR MORE INFO SEE THE 2019 LIGHTING Catalog and or visit morrisproducts.com
