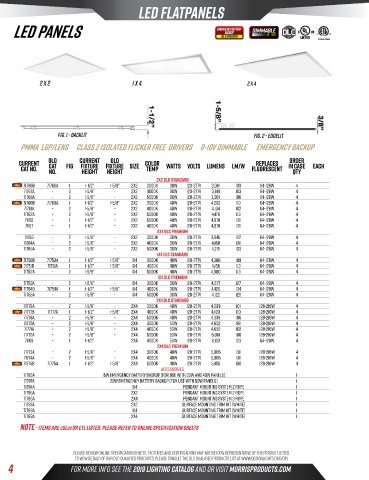

Page 6 - 2020 October Lighting Catalog

LED FLATPANELS

LED Panels 0-10V

2 x 2 1 x 4 2 x 4

Fig. 1 - backlit Fig. 2 - Edgelit

PMMA lgp/lens Class 2 Isolated Flicker Free drivers 0-10V Dimmable Emergency Backup
Order
Current OLD FIG Current OLD Color Watts volts Lumens Lm/w Replaces In Case Each
CAT
Fixture Fixture Size
Cat No. NO. Height Height Temp Fluorescent Qty
2x2 DLC Standard
71766B 71766A 1 1-1/2” 1-5/8” 2x2 3000K 30W 120-277V 3,081 100 64-128W 4
71767A - 2 1-5/8” - 2x2 4000K 30W 120-277V 3,144 103 64-128W 4
71768A - 2 1-5/8” - 2x2 5000K 30W 120-277V 3,207 106 64-128W 4
71760B 71760A 1 1-1/2” 1-5/8” 2x2 3000K 40W 120-277V 4,262 110 64-128W 4
71761A - 2 1-5/8” - 2x2 4000K 40W 120-277V 4,134 102 64-128W 4
71762A - 2 1-5/8” - 2x2 5000K 40W 120-277V 4,478 113 64-128W 4
71166 - 1 1-1/2” - 2x2 5000K 40W 120-277V 4,878 121 64-128W 4
71167 - 1 1-1/2” - 2x2 4000K 40W 120-277V 4,878 121 64-128W 4
2X2 DLC Premium
71763 - 2 1-5/8” - 2x2 3000K 30W 120-277V 3,645 122 64-128W 4
71764A - 2 1-5/8” - 2x2 4000K 30W 120-277V 4,160 131 64-128W 4
71765A - 2 1-5/8” - 2x2 5000K 30W 120-277V 4,215 133 64-128W 4
1X4 DLC Standard
71750B 71750A 1 1-1/2” 1-5/8” 1x4 3000K 40W 120-277V 4,306 109 64-128W 4
71751B 71751A 1 1-1/2” 1-5/8” 1x4 4000K 40W 120-277V 4,156 113 64-128W 4
71752A - 2 1-5/8” - 1x4 5000K 40W 120-277V 4,600 113 64-128W 4
1X4 DLC Premium
71753A - 2 1-5/8” - 1x4 3000K 30W 120-277V 4,027 127 64-128W 4
71754B 71754A 1 1-1/2” 1-5/8” 1x4 4000K 30W 120-277V 4,426 134 64-128W 4
71755A - 2 1-5/8” - 1x4 5000K 30W 120-277V 4,122 129 64-128W 4
2X4 DLC Standard
71776A - 2 1-5/8” - 2x4 3000K 40W 120-277V 4,099 101 128-216W 4
71777B 71777A 1 1-1/2” 1-5/8” 2x4 4000K 40W 120-277V 4,400 110 128-216W 4
71778A - 2 1-5/8” - 2x4 5000K 40W 120-277V 4,339 106 128-216W 4
71770A - 2 1-5/8” - 2x4 3000K 50W 120-277V 4,652 98 128-216W 4
71771A - 2 1-5/8” - 2x4 4000K 50W 120-277V 4,652 102 128-216W 4
71772A - 2 1-5/8” - 2x4 5000K 50W 120-277V 5,061 106 128-216W 4
71169 - 1 1-1/2” 2x4 4000K 50W 120-277V 6,133 123 64-128W 4
2X4 DLC Premium
71773A - 2 1-5/8” - 2x4 3000K 40W 120-277V 5,005 131 128-216W 4
71774A - 2 1-5/8” - 2x4 4000K 40W 120-277V 5,005 131 128-216W 4
71775B 71775A 1 1-1/2” 1-5/8” 2x4 5000K 40W 120-277V 5,405 136 128-216W 4
Accessories
71786A 15W Emergency Battery Backup (for use with 30w and 40w panels) 1
71787A 20w Emergency Battery Backup (for use with 50w panels) 1
71794A 1x4 Pendant Mounting System 2 Rope 1
71795A 2x2 Pendant Mounting System 2 Rope 1
71796A 2x4 Pendant Mounting System 3 Rope 1
71797A 2x2 Surface Mounting Trim Kit (White) 1
71798A 1x4 Surface Mounting Trim Kit (White) 1
71799A 2x4 Surface Mounting Trim Kit (White) 1
NOTE - items are culus or etl Listed. please refer to online specification sheets

Please review online specification sheets. Pictures and certifications may not be 100% representative of the product listed.
To view details of our DLC qualified products, please consult the DLC Qualified Products List at www.designlights.org/qpl
4 FOR MORE INFO SEE THE 2019 LIGHTING Catalog and or visit morrisproducts.com
