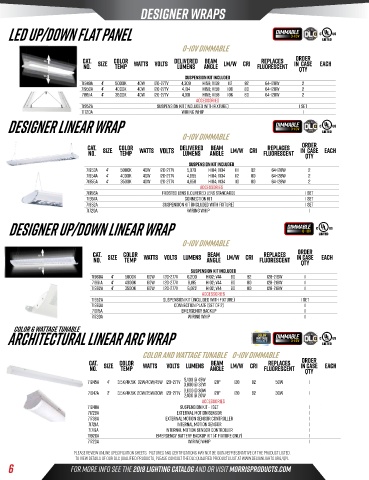

Page 8 - 2020 October Lighting Catalog

designer Wraps

LED up/down flat panel 0-10V

0-10V Dimmable
Order
Cat. Size Color Watts volts Delivered Beam Lm/W CRI Replaces In Case Each
No. Temp Lumens angle Fluorescent Qty
Suspension Kit included
71949A 4’ 5000K 40W 120-277V 4,309 h158; v158 112 82 64-128W 2
71950A 4’ 4000K 40W 120-277V 4,104 h158; v158 109 80 64-128W 2
71951A 4’ 3500K 40W 120-277V 4,001 h158; v158 106 80 64-128W 2
Accessories
71952A Suspension Kit (Included with fixture) 1 Set
71720A Wiring Whip 1
DESIGNER Linear Wrap 0-10V

0-10V Dimmable
Cat. Color Watts volts Delivered Beam Replaces Order
No. Size Temp Lumens angle Lm/W CRI Fluorescent In Case Each
Qty
Suspension Kit included
71953A 4’ 5000K 40W 120-277V 5,070 h104; v134 111 82 64-128W 2
71954A 4’ 4000K 40W 120-277V 4,995 h104; v134 112 80 64-128W 2
71955A 4’ 3500K 40W 120-277V 4,950 h104; v134 110 80 64-128W 2
Accessories
71956A Frosted Lens (Louvered Lens Standard) 1 Set
71957A Connection Kit 1 Set
71952A Suspension Kit (Included with fixture) 1 Set
71720A Wiring Whip 1
DESIGNER up/down linear wrap 0-10V

0-10V Dimmable

Cat. Color Beam Replaces Order
No. Size Temp Watts volts Lumens angle Lm/W CRI Fluorescent In Case Each
Qty
Suspension Kit included
71960A 4’ 5000K 60W 120-277V 6,200 h102; v44 90 82 128-216W 1
71961A 4’ 4000K 60W 120-277V 6,195 h102; v44 90 80 128-216W 1
71962A 4’ 3500K 60W 120-277V 6,022 h102; v44 90 80 128-216W 1
Accessories
71952A Suspension Kit (Included with fixture) 1 Set
71963A Connection Plate (set of 2) 1
71915A Emergency Backup 1
71720A Wiring Whip 1
Color & wattage Tunable
architectural linear arc Wrap 0-10V

color and wattage tunable 0-10V Dimmable
Cat. Color Beam Replaces Order
No. Size Temp Watts volts Lumens angle Lm/W CRI Fluorescent In Case Each
Qty
71945A 4’ 3.5K/4K 5K 32W/40W/45W 120-277V 5,400 @ 45W 120° 120 82 50W 1
3,800 @ 32W
71947A 2’ 3.5K/4K 5K 20W/25W/30W 120-277V 3,600 @ 30W 120° 120 82 30W 1
2,400 @ 20W
Accessories
71948A Suspension Kit - 1 set 1
71729A External motion sensor 1
71736A External motion sensor controller 1
71721a Internal motion sensor 1
71719A Internal motion sensor controller 1
71920a Emergency Battery backup Kit (4’ Fixture Only) 1
71720A Wiring Whip 1

Please review online specification sheets. Pictures and certifications may not be 100% representative of the product listed.
To view details of our DLC qualified products, please consult the DLC Qualified Products List at www.designlights.org/qpl
6 FOR MORE INFO SEE THE 2019 LIGHTING Catalog and or visit morrisproducts.com
