Computer Network 2021

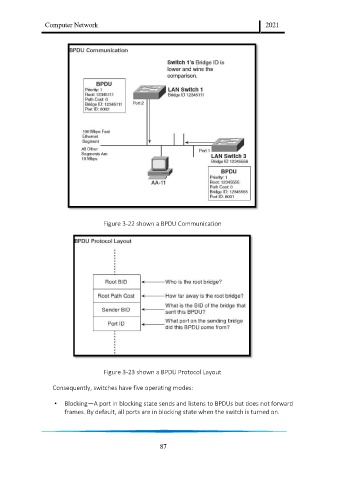

Figure 3-22 shown a BPDU Communication
Figure 3-23 shown a BPDU Protocol Layout
Consequently, switches have five operating modes:
• Blocking—A port in blocking state sends and listens to BPDUs but does not forward
frames. By default, all ports are in blocking state when the switch is turned on.
87
