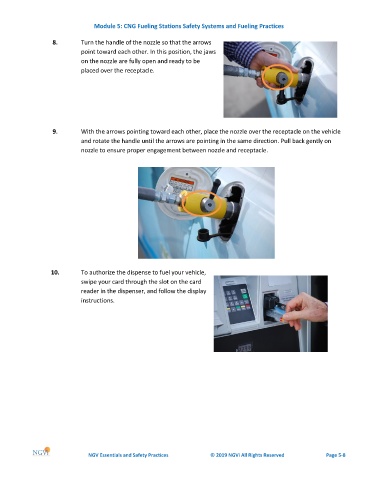

Page 47 - ESP Participant Guide_Neat
P. 47

Module 5: CNG Fueling Stations Safety Systems and Fueling Practices

                  8.        Turn the handle of the nozzle so that the arrows
                            point toward each other. In this position, the jaws
                            on the nozzle are fully open and ready to be
                            placed over the receptacle.









                  9.        With the arrows pointing toward each other, place the nozzle over the receptacle on the vehicle
                            and rotate the handle until the arrows are pointing in the same direction. Pull back gently on
                            nozzle to ensure proper engagement between nozzle and receptacle.






















                  10.       To authorize the dispense to fuel your vehicle,
                            swipe your card through the slot on the card
                            reader in the dispenser, and follow the display
                            instructions.




























                                           NGV Essentials and Safety Practices                                  © 2019 NGVi All Rights Reserved   Page 5-8
