P. 49

Module 5: CNG Fueling Stations Safety Systems and Fueling Practices

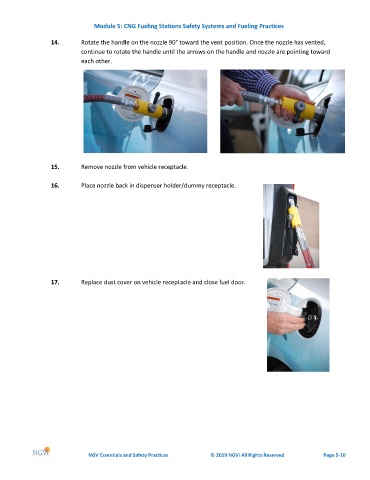

                  14.       Rotate the handle on the nozzle 90° toward the vent position. Once the nozzle has vented,
                            continue to rotate the handle until the arrows on the handle and nozzle are pointing toward
                            each other.



















                  15.       Remove nozzle from vehicle receptacle.

                  16.       Place nozzle back in dispenser holder/dummy receptacle.
















                  17.       Replace dust cover on vehicle receptacle and close fuel door.






























                                           NGV Essentials and Safety Practices                                  © 2019 NGVi All Rights Reserved   Page 5-10
