Module 8: LNG Vehicle Systems and Safety Practices

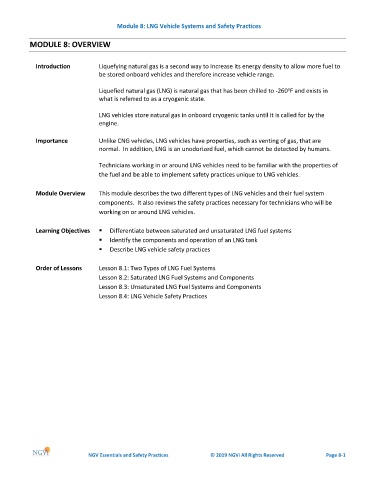

MODULE 8: OVERVIEW

Introduction Liquefying natural gas is a second way to increase its energy density to allow more fuel to
be stored onboard vehicles and therefore increase vehicle range.

o
Liquefied natural gas (LNG) is natural gas that has been chilled to -260 F and exists in
what is referred to as a cryogenic state.

LNG vehicles store natural gas in onboard cryogenic tanks until it is called for by the
engine.

Importance Unlike CNG vehicles, LNG vehicles have properties, such as venting of gas, that are
normal. In addition, LNG is an unodorized fuel, which cannot be detected by humans.

Technicians working in or around LNG vehicles need to be familiar with the properties of
the fuel and be able to implement safety practices unique to LNG vehicles.

Module Overview This module describes the two different types of LNG vehicles and their fuel system
components. It also reviews the safety practices necessary for technicians who will be
working on or around LNG vehicles.

Learning Objectives ▪ Differentiate between saturated and unsaturated LNG fuel systems
▪ Identify the components and operation of an LNG tank
▪ Describe LNG vehicle safety practices

Order of Lessons Lesson 8.1: Two Types of LNG Fuel Systems
Lesson 8.2: Saturated LNG Fuel Systems and Components
Lesson 8.3: Unsaturated LNG Fuel Systems and Components
Lesson 8.4: LNG Vehicle Safety Practices

NGV Essentials and Safety Practices © 2019 NGVi All Rights Reserved Page 8-1
