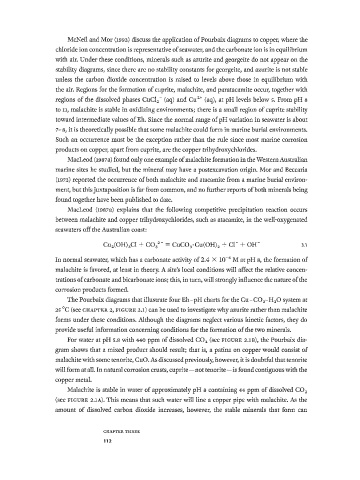

McNeil and Mor (1992) discuss the application of Pourbaix diagrams  to copper, where  the
          chloride ion concentration is representative  of  seawater, and the carbonate ion is in equilibrium
          with  air. Under these conditions, minerals such  as azurite and georgeite  do not appear on the
          stability diagrams,  since there  are no stability constants for georgeite, and azurite is not  stable
          unless  the  carbon  dioxide concentration  is  raised  to  levels  above  those in equilibrium  with
          the air. Regions for the formation of cuprite, malachite, and paratacamite  occur, together  with
          regions  of the  dissolved phases CuCl 2 ~  (aq)  and  Cu  2 +  (aq), at pH levels below 5. From pH 8
          to  11, malachite is stable in oxidizing environments;  there is a small region of cuprite stability
          toward intermediate values of Eh.  Since the normal range of  pH  variation in seawater is about
          7-  8, it is theoretically possible that some malachite could form in marine burial environments.
           Such  an  occurrence  must  be  the  exception rather  than  the  rule  since  most marine corrosion
          products on copper, apart from  cuprite, are the copper trihydroxychlorides.
              MacLeod (i987a) found only one example of malachite formation in the Western Australian
          marine  sites he  studied, but the mineral may have  a postexcavation  origin. Mor and Beccaria
           (1972) reported the occurrence  of both malachite and atacamite  from  a marine burial environ­
          ment, but this juxtaposition is far from  common, and no further reports  of both minerals being
          found together  have been published to date.
              MacLeod  (i987a)  explains  that  the  following  competitive precipitation reaction  occurs
          between  malachite and copper  trihydroxychlorides, such  as atacamite, in the well-oxygenated
          seawaters off  the Australian coast:

                         Cu 2 (OH) 3 Cl  +  C 0 3 "  =  CuC0 3 -Cu(OH) 2 +  Cl" +  OH"  3.1
                                         2
          In  normal seawater, which  has  a carbonate  activity of 2.4  X 10"  M at pH 8, the formation of
                                                               6
          malachite is favored, at least in theory. A site's local conditions will  affect the relative concen­
          trations of carbonate  and bicarbonate ions; this, in turn, will strongly influence the nature of  the
          corrosion products formed.
              The Pourbaix diagrams that illustrate four Eh-pH charts for the  C u - C 0 2 - H 2 0  system at
          25 °C (see  CHAPTER 2, FIGURE  2.i)  can be used to investigate why azurite rather than malachite
          forms  under  these conditions. Although  the  diagrams  neglect various kinetic factors,  they do
          provide useful information concerning conditions for the formation of the two minerals.
              For  water  at pH 5.8 with  440  ppm of dissolved  C 0 2  (see  FIGURE  2.1 B), the Pourbaix dia­
          gram  shows  that  a mixed product should result;  that is, a patina on copper  would  consist of
          malachite with some tenorite, CuO.  As  discussed previously, however, it  is doubtful that tenorite
          will form at all. In natural corrosion crusts, cuprite—not tenorite—is found contiguous with the
          copper metal.
              Malachite is stable in water of approximately pH 8 containing 44 ppm of dissolved  C 0 2
          (see  FIGURE  2.IA). This means that such water  will  line  a copper  pipe with  malachite. As the
          amount  of dissolved  carbon  dioxide increases,  however,  the  stable  minerals  that  form  can
