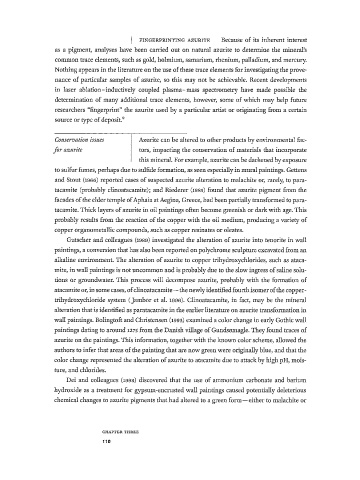

Page 127 - Copper and Bronze in Art: Corrosion, Colorants, Getty Museum Conservation, By David Scott
P. 127

I  FINGERPRINTING  AZURITE  Because of its inherent  interest
            as  a pigment,  analyses  have been  carried  out  on  natural  azurite  to  determine  the  mineral's
            common trace  elements,  such  as gold, holmium, samarium, rhenium, palladium, and mercury.
            Nothing appears in the literature on the use of these trace elements for investigating the prove­
            nance of particular  samples of azurite,  so  this  may not  be  achievable.  Recent  developments
            in  laser  ablation-inductively coupled  plasma-mass  spectrometry  have  made  possible  the
            determination  of many  additional trace  elements,  however,  some of which  may help  future
            researchers "fingerprint" the  azurite  used  by a particular artist or originating from  a certain
            source or type of deposit. 9


            Conservation issues      Azurite can be altered to other products by environmental fac-
           for  azurite              tors, impacting the  conservation of materials  that  incorporate
                                     this mineral. For example, azurite can be darkened by exposure
            to sulfur fumes, perhaps due to sulfide formation,  as seen especially in mural paintings. Gettens
            and  Stout  (ΐ96β)  reported cases of suspected azurite alteration to malachite  or, rarely, to para-
            tacamite  (probably clinoatacamite); and  Riederer  (i985)  found that  azurite pigment from  the
            facades of the elder temple of Aphaia at Aegina, Greece, had been partially transformed to para-
            tacamite. Thick layers of azurite in oil paintings often become  greenish  or dark with  age. This
            probably results  from  the reaction of the  copper with  the oil medium, producing a variety of
            copper organometallic compounds,  such  as copper résinâtes or oleates.
               Gutscher  and  colleagues  (i989)  investigated the  alteration of azurite into tenorite in wall
            paintings, a conversion that has  also been reported on polychrome sculpture excavated from  an
            alkaline environment. The  alteration of azurite  to copper  trihydroxychlorides,  such  as ataca-
            mite, in wall paintings is not uncommon and is probably due to the slow ingress of saline solu­
            tions  or  groundwater. This process  will  decompose azurite, probably with  the  formation of
            atacamite or, in some cases, of clinoatacamite—the newly identified fourth isomer of the copper-
            trihydroxychloride  system  ( Jambor  et  al. 1996).  Clinoatacamite, in fact,  may  be  the mineral
            alteration that is identified  as paratacamite in the earlier literature on azurite transformation in
            wall paintings. Bolingtoft  and Christensen  (1993)  examined a color change in early Gothic wall
            paintings dating to around 1275 from  the Danish village of Gundsomagle. They found traces of
            azurite on the paintings. This information,  together with the known color scheme, allowed the
            authors  to infer that areas of the painting that are now green were originally blue, and that the
            color change represented  the alteration of azurite to atacamite  due to attack by high pH, mois­
            ture, and chlorides.
               Dei  and  colleagues  (1998)  discovered  that  the  use  of ammonium  carbonate  and barium
            hydroxide  as  a treatment  for gypsum-encrusted  wall paintings  caused potentially deleterious
            chemical changes to azurite pigments that had altered to a green form—either to malachite or




                          C H A P T E R  T H R E E
                          110
