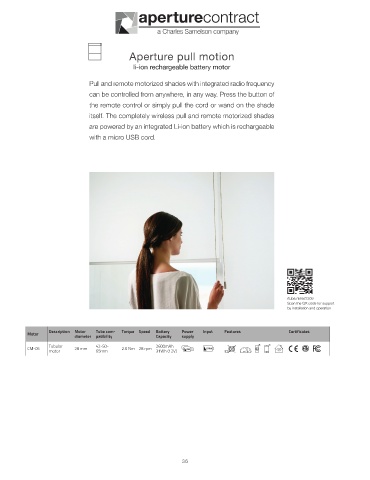

Page 36 - Aperture Specification Manual

Aperture pull motion
li-ion rechargeable battery motor

Pull and remote motorized shades with integrated radio frequency
can be controlled from anywhere, in any way. Press the button of
the remote control or simply pull the cord or wand on the shade
itself. The completely wireless pull and remote motorized shades

are powered by an integrated Li-ion battery which is rechargeable
with a micro USB cord.

rtube.nl/red1309
Scan the QR code for support
by installation and operation

Description Motor Tube com- Torque Speed Battery Power Input Features Certificates
Motor
diameter patibility Capacity supply
Tubular 42-50- 2600mAh
CM-05 28 mm 2.0 Nm 28 rpm
motor 65mm 31Wh (12V)

36
