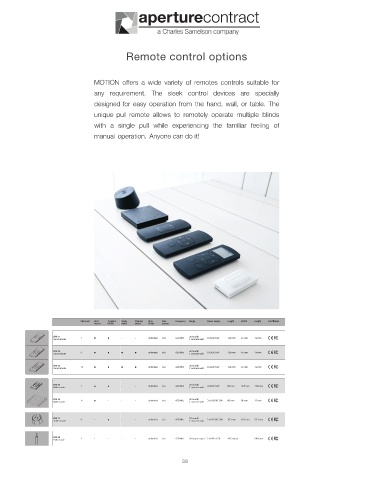

Remote control options

MOTION offers a wide variety of remotes controls suitable for

any requirement. The sleek control devices are specially
designed for easy operation from the hand, wall, or table. The
unique pull remote allows to remotely operate multiple blinds
with a single pull while experiencing the familiar feeling of

manual operation. Anyone can do it!

Channels Wall Program Single Channel Max. Max. Frequency Range Power supply Length Width Height Certificates
mount blinds select select blinds scenes
CM-11 1 ■ ■ - - unlimited n/a 433 MHz 30 m with CR2430 3.0V 120 mm 45 mm 14 mm
Hand remote 1 concrete wall
CM-12 5 ■ ■ ■ ■ unlimited n/a 433 MHz 30 m with CR2430 3.0V 120 mm 45 mm 14 mm
Hand remote 1 concrete wall
CM-13 15 ■ ■ ■ ■ unlimited n/a 433 MHz 30 m with CR2430 3.0V 120 mm 45 mm 14 mm
Hand remote 1 concrete wall

CM-15 ■ ■ 30 m with
Wall remote 1 - - unlimited n/a 433 MHz 1 concrete wall CR2430 3.0V 66 mm 32,5 mm 13,8 mm
CM-16 4 ■ - - - unlimited n/a 433 MHz 30 m with 3 x CR2430 3.0V 86 mm 86 mm 17 mm
Wall remote 1 concrete wall

CM-17 4 - ■ - - unlimited n/a 433 MHz 30 m with 2 x CR2450 3.0V 70,3 mm 62,7 mm 52,3 mm
Table remote 1 concrete wall
CM-18 1 - - - - unlimited n/a 433 MHz 20 m open space 2 x LR44 1.5V 19,5 mm ø 69,9 mm
Pull remote

CM-19
Motion Domotica box n/a ■ - - - unlimited 15 Micro USB - 5V DC 79 mm 79 mm 25 mm
RS485 38
CM-20 ■ ■ 433 MHz 30 m with
Motion Wifi bridge n/a - - 30 20 Wi-FI 2.4 1 concrete wall Micro USB - 5V DC 100 mm ø 25 mm
GHz
CM-29
Motion Dry contact box n/a n/a n/a n/a n/a n/a 9 12V DC 107 mm 90 mm 60 mm
RS485
