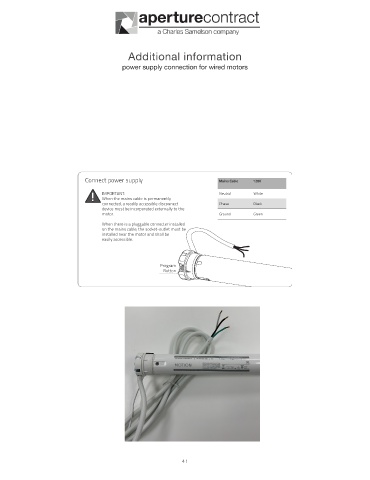

Additional information
power supply connection for wired motors
Connect power supply Mains Cable 120V
IMPORTANT: Neutral White
When the mains cable is permanently
connected, a readily accessible disconnect Phase Black
device must be incorporated externally to the
motor. Ground Green
When there is a pluggable connecter installed
on the mains cable, the socket-outlet must be
installed near the motor and shall be
easily accessible.
Program
Button
