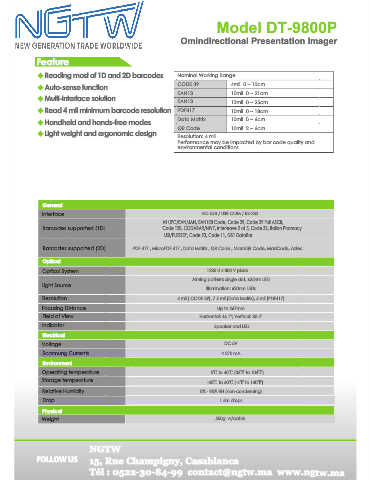

Model DT-9800P

Omindirectional Presentation Imager

Feature

¼Reading most of 1D and 2D barcodes Nominal Working Range
¼Auto-sense function CODE 39 4mil 0 ~ 10cm
EAN13 10mil 0 ~ 21cm
¼Multi-interface solution EAN13 13mil 0 ~ 25cm
¼Read 4 mil minimum barcode resolution PDF417 10mil 0 ~ 18cm

¼Handheld and hands-free modes Data Matrix 10mil 0 ~ 6cm
QR Code 10mil 2 ~ 6cm
¼Light weight and ergonomic design Resolution: 4 mil
Performance may be impacted by bar code quality and
environmental conditions

General
Interface HID USB / USB COM / RS-232
All UPC/EAN/JAN, EAN128 Code, Code 39, Code 39 Full ASCII,
Barcodes supported (1D) Code 128, CODABAR/NW7, Interleave 2 of 5, Code 32, Italian Phamacy
MSI/PLESSEY, Code 93, Code 11, GS1 DataBar

Barcodes supported (2D) PDF 417 , MicroPDF 417 , Data Matrix , QR Code , MicroQR Code, MaxiCode, Aztec

Optical
Optical System 1280 H x 800 V pixels
Aiming pattern: single dot, 625nm LED
Light Source
Illumination: 630nm LEDs
Resolution 4 mil ( CODE 39), 7.5 mil (Data Matrix), 5 mil (PDF417)

Focusing Distance Up to 267mm
Field of View Horizontal: 46.1°; Vertical: 30.4°
Indicator Speaker and LED
Electrical
Voltage DC 5V
Scannung Currents < 370 mA
Environment
Operating temperature 0Ċ to 40Ċ (32ċ to 104ċ)
Storage temperature -20Ċ to 60Ċ (-4ċ to 140ċ)

Relative Humidity 5% - 95% RH (non-condensing)
Drop 1.5m drops
Physical
Weight 550g w/cable
