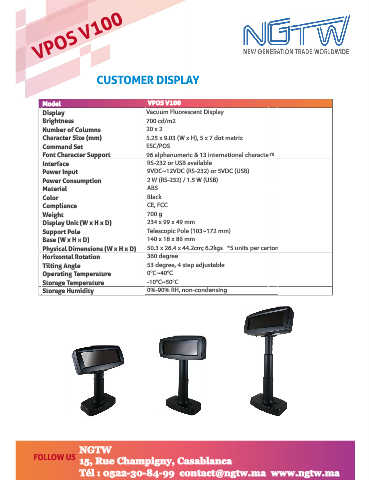

VPOS V100
CUSTOMER DISPLAY
Model VPOS V100
Display Vacuum Fluorescent Display
Brightness 700 cd/m2
Number of Columns 20 x 2
Character Size (mm) 5.25 x 9.03 (W x H), 5 x 7 dot matrix
Command Set ESC/POS
Font Character Support 96 alphanumeric & 13 international characters
Interface RS-232 or USB available
Power Input 9VDC~12VDC (RS-232) or 5VDC (USB)
Power Consumption 2 W (RS-232) / 1.5 W (USB)
Material ABS
Color Black
Compliance CE, FCC
Weight 700 g
Display Unit (W x H x D) 234 x 99 x 49 mm
Support Pole Telescopic Pole (103~172 mm)
Base (W x H x D) 140 x 18 x 86 mm
Physical Dimensions (W x H x D) 50.3 x 26.4 x 44.2cm; 6.2kgs *5 units per carton
Horizontal Rotation 360 degree
Tilting Angle 53 degree, 4 step adjustable
Operating Temperature 0°C~40°C
Storage Temperature -10°C~50°C
Storage Humidity 0%-90% RH, non-condensing
