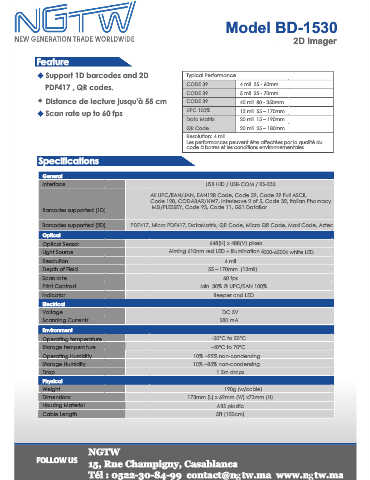

Page 9 - Catalogue Numerique NGTW

Model BD-1530

2D Imager

Feature

¼ Support 1D barcodes and 2D Typical Performance
PDF417 , QR codes. CODE 39 4 mil 35 - 60mm
CODE 39 5 mil 25 - 70mm
◆ Distance de lecture jusqu'à 55 cm CODE 39 40 mil 80 - 350mm
¼ Scan rate up to 60 fps UPC 100% 13 mil 55 – 170mm
Data Matrix 20 mil 15 – 190mm
QR Code 20 mil 25 – 180mm
Resolution: 4 mil
Les performances peuvent être affectées par la qualité du
code à barres et les conditions environnementales
Specifications

General
Interface USB HID / USB-COM / RS-232

All UPC/EAN/JAN, EAN128 Code, Code 39, Code 39 Full ASCII,
Code 128, CODABAR/NW7, Interleave 2 of 5, Code 32, Italian Phamacy
Barcodes supported (1D) MSI/PLESSEY, Code 93, Code 11, GS1 DataBar

Barcodes supported (2D) PDF417, Micro PDF417, DataMatrix, QR Code, Micro QR Code, Maxi Code, Aztec
Optical
Optical Sensor 648(H) x 488(V) pixels
Light Source Aiming 610nm red LED + Illumination 6000-6500k white LED
Resolution 4 mil
Depth of Field 55 – 170mm (13mil)
Scan rate 60 fps
Print Contrast Min. 30% @ UPC/EAN 100%
Indicator Beeper and LED
Electrical
Voltage DC 5V
Scanning Currents 280 mA
Environment
Operating temperature -20°C to 50°C
Storage temperature -40°C to 70°C
Operating Humidity 10% ~95% non-condensing
Storage Humidity 10% ~85% non-condensing
Drop 1.5m drops
Physical
Weight 190g (w/cable)
Dimensions 173mm (L) x 69mm (W) x73mm (H)
Housing Material ABS plastic
Cable Length 5ft (150cm)
