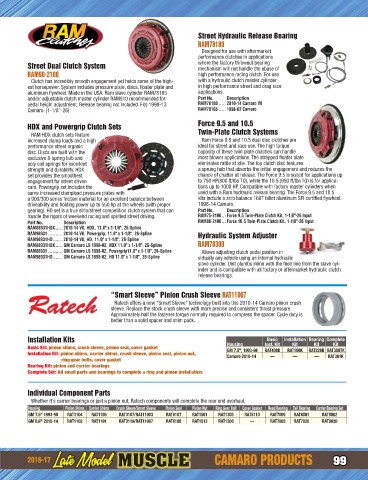

Page 100 - 2016-2017 Racecar Engineering Late Model Muscle Car Parts and Accessories Catalog

Street Hydraulic Release Bearing
RAM78180
Designed for use with aftermarket
performance clutches in applications
Street Dual Clutch System where the factory throwout bearing
mechanism will not handle the abuse of
RAM90-2100 high performance racing clutch. For use
Clutch has incredibly smooth engagement yet holds some of the high- with a hydraulic clutch master cylinder
est horsepower. System includes pressure plate, discs, floater plate and in high performance street and drag race
aluminum flywheel. Made in the USA. Ram slave cylinder RAM78165 applications.
and/or adjustable clutch master cylinder RAM510 recommended for Part No. Description
pedal height adjustment. Release bearing not included. Fits 1998-13 RAM78180 ..... 2010-14 Camaro V8
Camaro. (1-1/8"-26) RAM78165 ..... 1998-02 Camaro

HDX and Powergrip Clutch Sets Force 9.5 and 10.5
RAM HDX clutch sets feature Twin-Plate Clutch Systems
increased clamp loads and a high Ram Force 9.5 and 10.5 dual disc clutches are
performance street organic ideal for street and race use. The high torque
disc. Discs are built with the capacity of these twin plate clutches can handle
exclusive 8-spring hub and most blower applications. The strapped floater plate
poly coil springs for excellent eliminates rattle at idle. The top clutch disc features
strength and durability. HDX a sprung hub that absorbs the initial engagement and reduces the
set provides the smoothest chance of chatter at release. The Force 9.5 is suited for applications up
engagement for street driven to 750 HP(800 ft/lbs TQ), while the 10.5 (950 ft/lbs TQ) is for applica-
cars. Powergrip set includes the tions up to 1000 HP. Compatible with factory master cylinders when
same increased clampload pressure plates with used with a Ram hydraulic release bearing. The Force 9.5 and 10.5
a 900/300 series friction material for an excellent balance between kits include a zero balance 168T billet aluminum SFI certified flywheel.
driveability and holding power up to 550 hp at the wheels (with proper 1998-14 Camaro.
gearing). HD set is a true strip/street competition clutch system that can Part No. Description
handle the rigors of weekend racing and spirited street driving. RAM75-2100 ... Force 9.5 Twin-Plate Clutch Kit, 1-1/8"-26 Input
Part No. Description RAM80-2100 ... Force 10.5 Twin-Plate Clutch Kit, 1-1/8"-26 Input
RAM88931HDX ..... 2010-14 V8, HDX, 11.0" x 1-1/8", 26-Spline
RAM98931 .......... 2010-14 V8, Powergrip, 11.0" x 1-1/8", 26-Spline Hydraulic System Adjuster
RAM98931HD....... 2010-14 V8, HD, 11.0" x 1-1/8", 26-Spline
RAM88931HDX ..... GM Camaro LS 1998-02, HDX 11.0" x 1-1/8", 26-Spline RAM78300
RAM88931 .......... GM Camaro LS 1998-02, Powergrip11.0" x 1-1/8", 26-Spline Allows adjusting clutch pedal position in
RAM98931HD....... GM Camaro LS 1998-02, HD 11.0" x 1-1/8", 26-Spline virtually any vehicle using an internal hydraulic
slave cylinder. Unit plumbs inline with the feed line from the slave cyl-
inder and is compatible with all factory or aftermarket hydraulic clutch
release bearings.

“Smart Sleeve” Pinion Crush Sleeve RAT11007
Ratech offers a new “Smart Sleeve” technology built into this 2010-14 Camaro pinion crush
sleeve. Replace the stock crush sleeve with more precise and consistent thrust pressure.
Approximately half the fastener torque normally required to compress the spacer. Cycle duty is
better than a solid spacer and shim pack.

Installation Kits Basic Installation Bearing Complete
Housing Inst. Kit Kit Kit Kit
Basic Kit: pinion shims, crush sleeve, pinion seal, cover gasket GM 7.5", 1993-98 RAT408K RAT108K RAT228B RAT308TK
Installation Kit: pinion shims, carrier shims, crush sleeve, pinion seal, pinion nut, Camaro 2010-14 — — — RAT381K
ring gear bolts, cover gasket
Bearing Kit: pinion and carrier bearings
Complete Set: All small parts and bearings to com plete a ring and pinion installation.

Individual Component Parts
Whether it's carrier bearings or just a pinion nut, Ratech components will complete the rear end overhaul.
Housing Pinion Shims Carrier Shims Crush Sleeve/Smart Sleeve Pinion Seal Pinion Nut Ring Gear Bolt Cover Gasket Head Bearing Tail Bearing Carrier Bearing Set
GM 7.5" 1993-98 RAT1104 RAT1105 RAT3107/RAT11003 RAT6107 RAT1501 RAT1303 RAT5110 RAT7009 RAT8001 RAT9002
GM 8.6" 2010-14 RAT1102 RAT1101 RAT3119/RAT11007 RAT6188 RAT1513 RAT1303 — RAT7003 RAT7020 RAT9030
