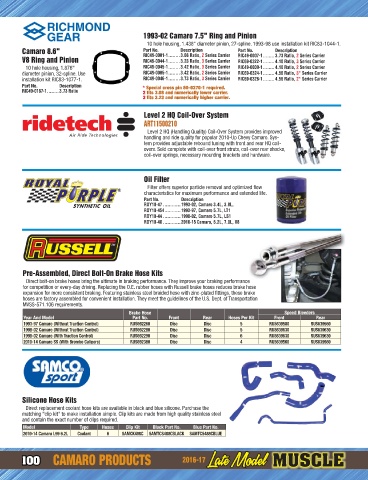

Page 101 - 2016-2017 Racecar Engineering Late Model Muscle Car Parts and Accessories Catalog

1993-02 Camaro 7.5" Ring and Pinion
10 hole housing, 1.438" diameter pinion, 27-spline. 1993-98 use installation kit RIC83-1044-1.
Camaro 8.6" Part No. Description Part No. Description
RIC49-0001-1 ........3.08 Ratio, 2 Series Carrier
RIC49-0007-1 ........3.73 Ratio, 2 Series Carrier
V8 Ring and Pinion RIC49-0044-1 ........3.23 Ratio, 3 Series Carrier RIC69-0322-1 ........4.10 Ratio, 3 Series Carrier
10 hole housing, 1.876" RIC49-0045-1 ........3.42 Ratio, 3 Series Carrier RIC49-0009-1 ........4.10 Ratio, 2 Series Carrier
diameter pinion, 32-spline. Use RIC49-0005-1 ........3.42 Ratio, 2 Series Carrier RIC69-0324-1 ........4.56 Ratio, 3* Series Carrier
installation kit RIC83-1077-1. RIC49-0046-1 ........3.73 Ratio, 3 Series Carrier RIC69-0326-1 ........4.56 Ratio, 2* Series Carrier
Part No. Description * Special cross pin 80-0270-1 required.
RIC49-0187-1 ........3.73 Ratio 2 fits 3.08 and numerically lower carrier.
3 fits 3.23 and numerically higher carrier.

Level 2 HQ Coil-Over System
ART11500210
Level 2 HQ (Handling Quality) Coil-Over System provides improved
handling and ride quality for popular 2010-Up Chevy Camaro. Sys-
tem provides adjustable rebound tuning with front and rear HQ coil-
overs. Sold complete with coil-over front struts, coil-over rear shocks,
coil-over springs, necessary mounting brackets and hardware.

Oil Filter
Filter offers superior particle removal and optimized flow
characteristics for maximum performance and extended life.
Part No. Description
ROY10-47 ............1993-02, Camaro 3.4L, 3.8L,
ROY10-454 ...........1993-97, Camaro 5.7L, LT1
ROY10-44 ............1998-02, Camaro 5.7L, LS1
ROY10-48 ............2010-15 Camaro, 6.2L, 7.0L, V8

Pre-Assembled, Direct Bolt-On Brake Hose Kits
Direct bolt-on brake hoses bring the ultimate in braking performance. They improve your braking performance
for competition or every-day driving. Replacing the O.E. rubber hoses with Russell brake hoses reduces brake hose
expansion for more consistent braking. Featuring stainless steel braided hose with zinc-plated fittings, these brake
hoses are factory assembled for convenient installation. They meet the guidelines of the U.S. Dept. of Transportation
MVSS-571.106 requirements.
Brake Hose Speed Bleeders
Year And Model Part No. Front Rear Hoses Per Kit Front Rear
1993-97 Camaro (Without Traction Control) RUS692260 Disc Disc 5 RUS639580 RUS639560
1998-02 Camaro (Without Traction Control) RUS692280 Disc Disc 5 RUS639630 RUS639630
1998-02 Camaro (With Traction Control) RUS692290 Disc Disc 6 RUS639630 RUS639630
2010-14 Camaro SS (With Brembo Calipers) RUS692380 Disc Disc 4 RUS639560 RUS639560

Silicone Hose Kits
Direct replacement coolant hose kits are available in black and blue silicone. Purchase the
matching "clip kit" to make installation simple. Clip kits are made from high quality stainless steel
and contain the exact number of clips required.
Model Type Hoses Clip Kit Black Part No. Blue Part No.
2010-14 Camaro L99 6.2L Coolant 6 SAMCK488C SAMTCS488CBLACK SAMTCS488CBLUE
