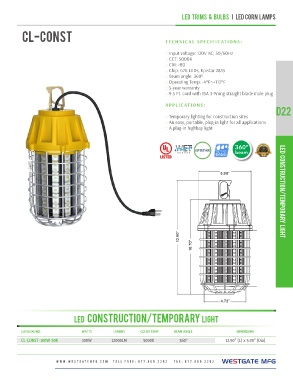

Page 167 - Westgate Catalog #34 Ver.2
P. 167
LED TRIMS & BULBS I LED CORN LAMPS
CL-CONST TECHNICAL SPECIFICATIONS:
:: Input voltage: 120V AC, 50/60Hz
:: CCT: 5000K
:: CRI: >80
:: Chip: 676 LEDs, Epistar 2835
:: Beam angle: 360º
:: Operating Temp: -4ºF~+113ºF
:: 5-year warranty
:: 9.5 Ft. cord with 15A 3-Prong straight blade male plug
APPLICATIONS: D22
:: Temporary lighting for construction sites
:: An easy, portable, plug-in light for all applications
:: A plug-in highbay light
location 360º FLLEUDSCHODNRSUTMRULCITGIHOTNS/TEMPORARY light
beam
LED CONSTRUCTION/TEMPORARY LIGHT
CATALOG NO. WATTS LUMENS COLOR TEMP BEAM ANGLE DIMENSIONS
CL-CONST-100W-50K 100W 12000LM 5000K 360º 12.90” (L) x 5.90” (Dia)
W W W . W E S T G AT E M F G . C O M T O L L F R E E : 8 7 7 . 8 0 5 . 2 2 5 2 FA X : 8 7 7 . 8 0 9 . 2 2 5 2 WESTGATE MFG
