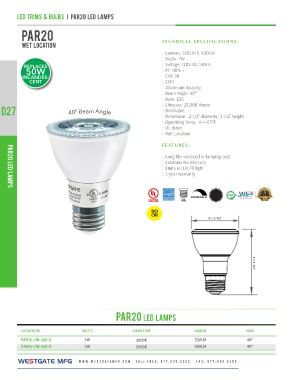

Page 172 - Westgate Catalog #34 Ver.2

LED TRIMS & BULBS I PAR20 LED LAMPS TECHNICAL SPECIFICATIONS:
:: Lumens: 550LM & 600LM
PAR20 :: Watts: 7W
:: Voltage: 120V AC/ 60Hz
WET LOCATION :: PF: 90% +
:: CRI: 90
R5EP0LAWCES :: COB
:: Aluminum housing
INCANDES- :: Beam Angle: 40°
CENT :: Base: E26
:: Lifespan: 25,000 Hours
D27 40º Beam Angle :: Dimmable
:: Dimension: 2-1/2” diameter, 3-1/2” height
PAR20 LED LAMPS :: Operating Temp: -4~+113ºF
:: UL listed
:: Wet Location
FEATURES:
:: Long life—reduced re-lamping cost
:: Contains No Mercury
:: Emits no UV/IR light
:: 5-year warranty

LHUMIGEHN location

90

CRI

PAR20 LED LAMPS

CATALOG NO. WATTS COLOR TEMP LUMENS BEAM

PAR20-7W-30K-D 7W 3000K 550LM 40º
PAR20-7W-50K-D 7W 5000K 600LM 40º

WESTGATE MFG W W W . W E S T G A T E M F G . C O M T O L L F R E E : 8 7 7 . 8 0 5 . 2 2 5 2 F A X : 8 7 7 . 8 0 9 . 2 2 5 2
