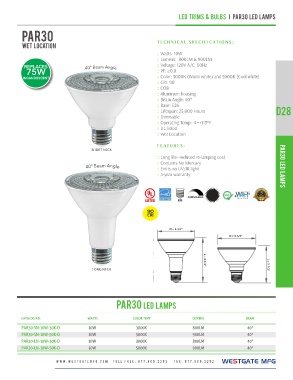

Page 173 - Westgate Catalog #34 Ver.2
P. 173
LED TRIMS & BULBS I PAR30 LED LAMPS
PAR30 40º Beam Angle TECHNICAL SPECIFICATIONS:
:: Watts: 10W
WET LOCATION SHORT NECK :: Lumens: 800LM & 900LM
:: Voltage: 120V A/C 60Hz
R7EP5LAWCES 40º Beam Angle :: PF: ≥0.8
:: Color: 3000K (Warm white) and 5000K (Cool white)
INCANDESCENT :: CRI: 90
:: COB
:: Aluminum housing D28
:: Beam Angle: 40°
:: Base: E26 PAR30 LED LAMPS
:: Lifespan: 25,000 Hours
:: Dimmable
:: Operating Temp: -4~+113ºF
:: UL listed
:: Wet Location
FEATURES:
:: Long life—reduced re-lamping cost
:: Contains No Mercury
:: Emits no UV/IR light
:: 5-year warranty
LHUMIGEHN location
90
CRI
LONG NECK
CATALOG NO. WATTS PAR30 LED LAMPS LUMENS BEAM
PAR30-SN-10W-30K-D 10W COLOR TEMP 800LM 40º
PAR30-SN-10W-50K-D 10W 900LM 40º
PAR30-LN-10W-30K-D 10W 3000K 800LM 40º
PAR30-LN-10W-50K-D 10W 5000K 900LM 40º
3000K
5000K
