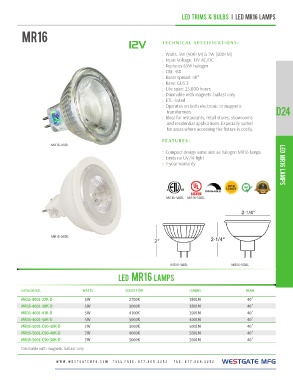

LED TRIMS & BULBS I LED MR16 LAMPS

mr16 12V TECHNICAL SPECIFICATIONS:
:: Watts: 5W (400LM) & 7W (500LM)
MR16-400L :: Input Voltage: 12V AC/DC D24
:: Replaces 65W halogen
:: CRI: >80 FLELUDSMHRD1R6ULMAMLIPGSHTS
:: Beam spread: 40°
:: Base: GU5.3
:: Life span: 25,000 hours
:: Dimmable with magnetic ballast only
:: ETL -listed
:: Operates on both electronic or magnetic

transformers
:: Ideal for restaurants, retail stores, showrooms

and residential applications. Especially suited
for areas where accessing the fixture is costly.
FEATURES:
:: Compact design same size as halogen MR16 lamps
:: Emits no UV/IR light
:: 5-year warranty

LHUMIGEHN

MR16-400L MR16-500L

MR16-500L

MR16-400L MR16-500L

LED MR16 LAMPS

CATALOG NO. WATTS COLOR TEMP LUMENS BEAM

MR16-400L-27K-D 5W 2700K 380LM 40°
MR16-400L-30K-D 5W 3000K 380LM 40°
MR16-400L-41K-D 5W 4100K 390LM 40°
MR16-400L-50K-D 5W 5000K 400LM 40°
MR16-500L-C90-30K-D 7W 3000K 500LM 40°
MR16-500L-C90-40K-D 7W 4000K 560LM 40°
MR16-500L-C90-50K-D 7W 5000K 560LM 40°

Dimmable with magnetic ballast only
