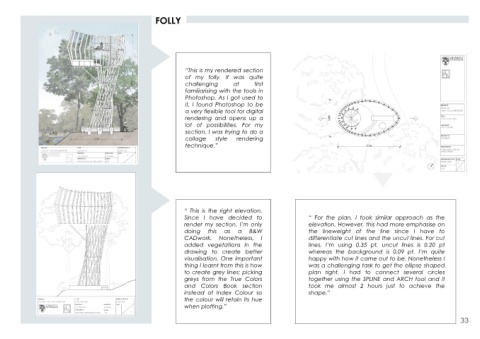

FOLLY

“This is my rendered section
of my folly. It was quite
challenging at first
familiarising with the tools in
Photoshop. As I got used to
it, I found Photoshop to be Insert A3 folly
a very flexible tool for digital
rendering and opens up a
lot of possibilities. For my
section, I was trying to do a
collage style rendering
technique.”

“ This is the right elevation.
Since I have decided to “ For the plan, I took similar approach as the
render my section, I’m only elevation. However, this had more emphasise on
doing this as a B&W the lineweight of the line since I have to
CADwork. Nonetheless, I differentiate cut lines and the uncut lines. For cut
added vegetations in the lines, I’m using 0.35 pt, uncut lines is 0.20 pt
drawing to create better whereas the background is 0.09 pt. I’m quite
visualisation. One important happy with how it came out to be. Nonetheless I
thing I learnt from this is how was a challenging task to get the ellipse shaped
to create grey lines: picking plan right. I had to connect several circles
greys from the True Colors together using the SPLINE and ARCH tool and it
and Colors Book section took me almost 2 hours just to achieve the
instead of Index Colour so shape.”
the colour will retain its hue
when plotting.”
