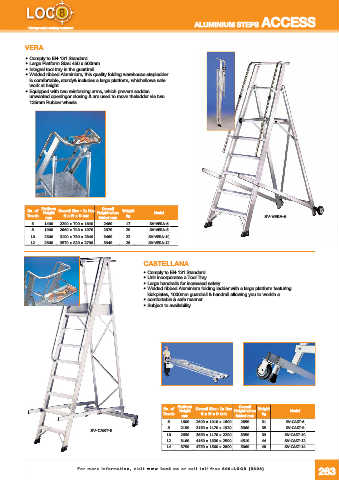

Page 263 - LOC8_catalouge

ACCESS
aLUMInIUM StePS
Storage and handling solutions

VeRa
• Comply to EN-131 Standard
• Large Platform Size: 450 x 500mm
• Integral tool tray in the guardrail
• Welded ribbed Aluminium, this quality folding warehouse stepladder
is comfortable, sturdy& includes a large platform, whichallows safe
work at height
• Equipped with two reinforcing arms, which prevent sudden
unwanted openingor closing & are used to move theladder via two
125mm Rubber wheels

Platform Overall
No. of Overall Size - In Use Weight
Treads Height H x W x D mm Height when kg Model
mm folded mm SV-VERA-6
6 1400 2200 x 700 x 1640 2460 17 SV-VERA-6
8 1900 2660 x 740 x 1970 2970 20 SV-VERA-8
10 2300 3100 x 780 x 2340 3460 23 SV-VERA-10
12 2800 3570 x 820 x 2700 3940 26 SV-VERA-12

CaSteLLana
• Comply to EN-131 Standard
• Unit incorporates a Tool Tray
• Large handrails for increased safety
• Welded ribbed Aluminium folding ladder with a large platform featuring
kickplates, 1000mm guardrail & handrail allowing you to workin a
• comfortable & safe manner
• Subject to availability

Platform Overall
No. of Height Overall Size - In Use Height when Weight Model
Treads H x W x D mm kg
mm folded mm
6 1600 2600 x 1010 x 1600 2850 31 SV-CAST-6
SV-CAST-8 8 2150 3150 x 1170 x 1920 3360 35 SV-CAST-8
10 2650 3650 x 1170 x 2200 3950 39 SV-CAST-10
12 3160 4160 x 1330 x 2500 4510 44 SV-CAST-12
14 3750 4750 x 1500 x 2800 5060 48 SV-CAST-14

263
For more information, visit www.loc8.ae or call toll free 800-LOC8 (5628)
