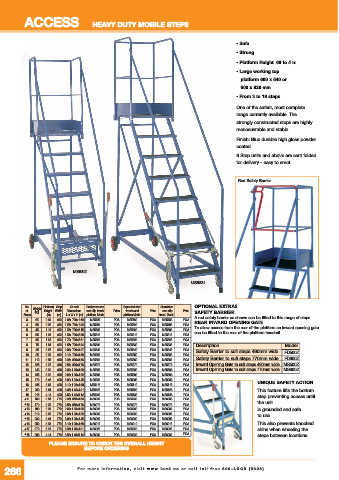

ACCESS HeaVy DUty MOBILe StePS

• Safe
• Strong
• Platform Height .69 to 4 m
• Large working top
platform 600 x 540 or
600 x 820 mm
• From 3 to 18 steps

One of the safest, most complete
range currently available. The
strongly constructed steps are highly
manoeuvrable and stable.
Finish: Blue durable high gloss powder
coated.
6 Step units and above are sent folded
for delivery - easy to erect.

Red Safety Barrier

MS5822

MS5831

No. Weight Platform Step Overall Rubber covered Expanded steel Aluminium OPTIONAL EXTRAS
of (kg) Height Width Dimensions non-slip treads Price treads and Price non-slip Price SAFETY BARRIER
Steps (m) (m) L x W x H (m) platform Model platform Model tread Model
3 25 0.69 .490 1.06x.700x1.69 MS5781 POA MS5782 POA MS5783 POA A red safety barrier as shown can be fitted to this range of steps.
REAR INWARD OPENING GATE
4 35 0.92 .490 1.27x.700x1.92 MS5791 POA MS5792 POA MS5793 POA
5 45 1.15 .490 1.37x.700x2.15 MS5801 POA MS5802 POA MS5803 POA To allow access from the rear of the platform an inward opening gate
6 55 1.38 .490 1.54x.700x2.38 MS5811 POA MS5812 POA MS5813 POA can be fitted to the rear of the platform handrail.
7 65 1.61 .490 1.70x.700x2.61 MS5821 POA MS5822 POA MS5823 POA
8 75 1.84 .490 1.87x.700x2.84 MS5831 POA MS5832 POA MS5833 POA Description Model Price
9 85 2.07 .490 2.03x.700x3.07 MS5841 POA MS5842 POA MS5843 POA Safety Barrier to suit steps 490mm wide FD500Z
10 95 2.30 .490 2.19x.700x3.30 MS5851 POA MS5852 POA MS5853 POA
11 110 2.53 .490 2.36x.800x3.53 MS5861 POA MS5862 POA MS5863 POA Safety Barrier to suit steps 770mm wide FD600Z
12 125 2.76 .490 2.53x.800x3.76 MS5871 POA MS5872 POA MS5873 POA Inward Opening Gate to suit steps 490mm wide MS500Z
13 140 2.99 .490 2.69x1.15x3.99 MS5881 POA MS5882 POA MS5883 POA Inward Opening Gate to suit steps 770mm wide MS600Z
14 155 3.22 .490 2.86x1.23x4.22 MS5891 POA MS5892 POA MS5893 POA
15 170 3.45 .490 3.02x1.23x4.45 MS5901 POA MS5902 POA MS5903 POA
16 185 3.68 .490 3.19x1.23x4.68 MS5111 POA MS5112 POA MS5113 POA UNIqUE SAFETY ACTION
17 200 3.91 .490 3.35x1.40x4.91 MS5121 POA MS5122 POA MS5123 POA This feature lifts the bottom
18 215 4.14 .490 3.52x1.40x5.14 MS5131 POA MS5132 POA MS5133 POA
*
11 150 2.53 .770 2.36x.950x3.53 MS6961 POA MS6962 POA MS6963 POA step preventing access until
*
12 170 2.76 .770 2.53x.950x3.76 MS6971 POA MS6972 POA MS6973 POA the unit
*
13 190 2.99 .770 2.69x1.15x3.99 MS6981 POA MS6982 POA MS6983 POA is grounded and safe
*
14 210 3.22 .770 2.86x1.23x4.22 MS6991 POA MS6992 POA MS6993 POA to use.
15 230 3.45 .770 3.02x1.23x4.45 MS6901 POA MS6902 POA MS6903 POA
*
*
16 250 3.68 .770 3.19x1.23x4.68 MS6911 POA MS6912 POA MS6913 POA This also prevents knocked
*
17 270 3.91 .770 3.35x1.40x4.91 MS6921 POA MS6922 POA MS6923 POA shins when wheeling the
*
18 280 4.14 .770 3.52x1.40x5.14 MS6931 POA MS6932 POA MS6933 POA steps between locations.
PLEASE ENSURE TO CHECK THE OVERALL HEIGHT
BEFORE ORDERING
