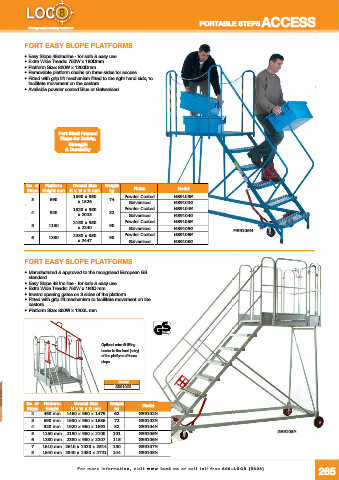

PORtaBLe StePS ACCESS
Storage and handling solutions

FORT EASY SLOPE PLATFORMS

• Easy Slope 48oIncline - for safe & easy use
• Extra Wide Treads: 750W x 180Dmm
• Platform Size: 800W x 1200Dmm
• Removable platform chains on three sides for access
• Fitted with grip lift mechanism fitted to the right hand side, to
facilitate movement on the castors
• Available powder coated Blue or Galvanised

Fort Steel Framed
Steps for Safety,
Strength
& Durability

No. of Platform Overall Size Weight
Steps Height mm H x W x D mm kg Finish Model
1690 x 950 Powder Coated MS9103M
3 690 74
x 1826 Galvanised MS9103G
1920 x 950 Powder Coated MS9104M
4 920 82
x 2033 Galvanised MS9104G
2150 x 950 Powder Coated MS9105M
5 1150 90
x 2240 Galvanised MS9105G MS9106M
2380 x 950 Powder Coated MS9106M
6 1380 98
x 2447 Galvanised MS9106G

FORT EASY SLOPE PLATFORMS

• Manufactured & approved to the recognised European GS
standard
• Easy Slope 48 Inc line - for safe & easy use
• Extra Wide Treads: 750W x 180D mm
• Inward opening gates on 3 sides of the platform
• Fitted with grip lift mechanism to facilitate movement on the
castors
• Platform Size: 800W x 1200L mm

Optional retro-fit lifting
barrier to the front (entry)
of the platform of these
steps.

Model
SB910GS

No. of Platform Overall Size Weight Model
Steps Height H x W x D mm kg
2 460 mm 1460 x 960 x 1479 62 GS9102M
3 690 mm 1690 x 960 x 1686 72 GS9103M
4 920 mm 1920 x 960 x 1893 82 GS9104M
5 1150 mm 2150 x 960 x 2100 101 GS9105M GS9108M
6 1380 mm 2380 x 980 x 2307 115 GS9106M
7 1610 mm 2610 x 1030 x 2514 130 GS9107M
8 1840 mm 2840 x 1080 x 2721 144 GS9108M

265
