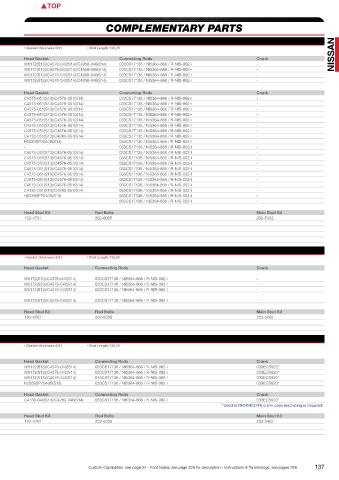

Nissan PISTONS COMPLEMENTARY PARTS

SR20DET as in 180SX/200SX (S13+S14)
OEM Engine details 2,0 Ltr 16V Engine code:SR20DET • Displacement:1998 cc • Valves:16 • Comp. Ratio:8,5:1 • Head cc’s:45,00 • Gasket thickness:0,91 • Rod Length:136,25
Bore:86,00 • Stroke:86,00 • Block Ht:211,25 NISSAN
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K556M86AP 86,00 Std. 32,00 -12 0 9,1:1-9,25:1 22 8600XX 328 1,2 W6172(S13)/C4576-040(S14)/C4950-040(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
K556M8625AP 86,25 0,25 32,00 -12 0 9,1:1-9,25:1 22 8625XX 330 1,2,M W6172(S13)/C4576-040(S14)/C4950-040(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
K556M865AP 86,50 0,50 32,00 -12 0 9,1:1-9,25:1 22 8650XX 337 1,2 W6172(S13)/C4576-040(S14)/C4950-040(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
K556M87AP 87,00 1,00 32,00 -12 0 9,1:1-9,25:1 22 8700XX 345 1,2 W6172(S13)/C4576-040(S14)/C4950-040(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
C/R with 1,30 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
361302 86,00 Std. 31,83 -13 0,17- 8.5:1 22 JG1004-3386 - F,PS,UL C4575-051(S13)/C4576-051(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
361298 86,25 0,25 31,83 -11,5 0,17- 8,5:1 22 JG1004-3396 312 PS,S,T C4575-051(S13)/C4576-051(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
361303 86,50 0,50 31,83 -13,6 0,17- 8.5:1 22 JG1004-3405 - F,PS,UL C4575-051(S13)/C4576-051(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
361304 87,00 1,00 31,83 -14,3 0,17- 8.5:1 22 JG1004-3425 - F,PS,UL C4575-051(S13)/C4576-051(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
298727 86,00 Std. 31,83 -13 0,17- 8,5:1 22 JG1004-3386 309 PS,S,T C4575-051(S13)/C4576-051(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
298728 86,50 0,50 31,83 -13,6 0,17- 8,5:1 22 JG1004-3405 313 PS,S,T C4575-051(S13)/C4576-051(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
298729 87,00 1,00 31,83 -14,3 0,17- 8,5:1 22 JG1004-3425 316 PS,S,T C4575-051(S13)/C4576-051(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
317917 88,00 2,00 31,83 -14,1 0,17- 8,5:1 22 JG1004-3465 320 M,PS,S,T C4130-051(S13)/C4283-051(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
317918 89,00 3,00 31,83 -15,5 0,17- 8,5:1 22 JG1004-3504 326 M,PS,S,T H2039SP7040S(S13) 033CS17136 / NI5364-866 / R-NIS-002-I -
317919 90,00 4,00 31,83 -16,9 0,17- 8,5:1 22 JG1004-3543 330 M,PS,S,T - 033CS17136 / NI5364-866 / R-NIS-002-I -
361305 86,00 Std. 31,83 -2 0,17- 10,0:1 22 JG1004-3386 - F,PS,UL C4575-051(S13)/C4576-051(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
361299 86,25 0,25 31,83 0,17- 10,0:1 22 JG1004-3396 314 M,PS,S,T C4575-051(S13)/C4576-051(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
361306 86,50 0,50 31,83 -2,4 0,17- 10,0:1 22 JG1004-3405 - F,PS,UL C4575-051(S13)/C4576-051(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
361307 87,00 1,00 31,83 -3 0,17- 10,0:1 22 JG1004-3425 - F,PS,UL C4575-051(S13)/C4576-051(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
309212 86,00 Std. 31,83 -2 0,17- 10,0:1 22 JG1004-3386 313 PS,S,T C4575-051(S13)/C4576-051(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
309213 86,50 0,50 31,83 -2,4 0,17- 10,0:1 22 JG1004-3405 315 PS,S,T C4575-051(S13)/C4576-051(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
309214 87,00 1,00 31,83 -3 0,17- 10,0:1 22 JG1004-3425 317 PS,S,T C4575-051(S13)/C4576-051(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
317920 88,00 2,00 31,83 -3,6 0,17- 10,0:1 22 JG1004-3465 324 M,PS,S,T C4130-051(S13)/C4283-051(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
317921 89,00 3,00 31,83 -4,7 0,17- 10,0:1 22 JG1004-3504 330 M,PS,S,T H2039SP7040S(S13) 033CS17136 / NI5364-866 / R-NIS-002-I -
317922 90,00 4,00 31,83 -5,9 0,17- 10,0:1 22 JG1004-3543 336 M,PS,S,T - 033CS17136 / NI5364-866 / R-NIS-002-I -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B2960H(HX/0,025/0,25/0,50) 5M2964H(HX/0,025/0,25/0,50) 1T2964 102-4701 202-6005 202-5402
4B2976H(HX/0,025/0,25/0,50) (GTI-R) 5M2975H(HX/0,025/0,25/0,50) (GTI-R) 1T2964
KING CR4136XP MB5243XP -
CR4136XPC MB5243XPC -
CR4587XP (GTI-R) MB5721XP (GTI-R) TW 139AM
SR20 as in Primera
OEM Engine details 2,0 Ltr 16V Engine code:SR20DE • Displacement:1998 cc • Valves:16 • Comp. Ratio:11,0:1 • Head cc’s:45,00 • Gasket thickness:0,91 • Rod Length:136,25
Bore:86,00 • Stroke:86,00 • Block Ht:211,25
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
No valve pockets
K557M86 86,00 Std. 32,00 0 FT 0 11,0:1 22 8600XX 330 1,2,M W6172(S13)/C4576-040(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
K557M865 86,50 0,50 32,00 0 FT 0 11,0:1 22 8650XX 336 1,2,M W6172(S13)/C4576-040(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
K557M87 87,00 1,00 32,00 0 FT 0 11,0:1 22 8700XX 344 1,2 W6172(S13)/C4576-040(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -
With valve pockets
KE233M87 87,00 1,00 32,00 4 0 12,0:1 22 8700XX 330 1,2,E,F W6172(S13)/C4576-040(S14) 033CS17136 / NI5364-866 / R-NIS-002-I -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B2960H(HX/0,025/0,25/0,50) 5M2964H(HX/0,025/0,25/0,50) 1T2964 102-4701 202-6005 202-5402
KING CR4136XP MB5243XP -
CR4136XPC MB5243XPC -

Sentra SR20 & SR20DET 92,00 mm stroker crank
OEM Engine details 2,0 Ltr 16V Engine code:SR20/SR20DET • Displacement:1998 cc • Valves:16 • Comp. Ratio:8,5:1 • Head cc’s:45,00 • Gasket thickness:0,91 • Rod Length:136,25
Bore:86,00 • Stroke:92,00 • Block Ht:211,25

Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K655M86 86,00 Std. 28,95 -17 0 9,0:1 22 8600XX 316 1,2,M W6172(S13)/C4576-040(S14) 033CS17136 / NI5364-866 / R-NIS-002-I 033ECS920*
K655M865 86,50 0,50 28,95 -17 0 9,0:1 22 8650XX 321 1,2,M W6172(S13)/C4576-040(S14) 033CS17136 / NI5364-866 / R-NIS-002-I 033ECS920*
K655M87 87,00 1,00 28,95 -17 0 9,0:1 22 8700XX 327 1,2,M W6172(S13)/C4576-040(S14) 033CS17136 / NI5364-866 / R-NIS-002-I 033ECS920*
K655M89 89,00 3,00 28,95 -17 0 9,0:1 22 8900XX 350 1,2,M H2039SP7040S(S13) 033CS17136 / NI5364-866 / R-NIS-002-I 033ECS920*

Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
301187C 88,50 2,50 28,83 -9 0,12- 10:1 22 JG1001-3484 314 M,V C4130-040(S13)/C4283-040(S14) 033CS17136 / NI5364-866 / R-NIS-002-I 033ECS920*
* Used in RNN14(GTiR) crank case machining is required!
