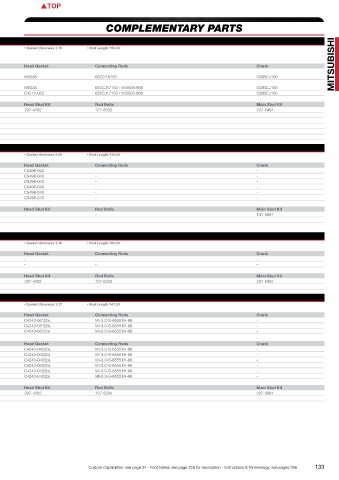

Mitsubishi PISTONS COMPLEMENTARY PARTS

4G64 16V as in Eclipse II
OEM Engine details 2,4 Ltr 16V Engine code:4G64 • Displacement:2351 cc • Valves:16 • Comp. Ratio:9,5:1-9,6:1 • Head cc’s:47,00 • Gasket thickness:1,10 • Rod Length:150,00
Bore:86,50 • Stroke:100,00 • Block Ht:235,00
C/R with 1,00 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank MITSUBISHI
With 4G63 head (21 mm pin)
256466 87,00 0,50 34,70 -24 0,28- 8,5:1 21 JG2104-3425 316 PS,R W6038 032CI16150 032BCJ100
With 4G63 head (22 mm pin)
256468 87,00 0,50 34,72 -24 0,28- 8,5:1 22 JG2104-3425 314 R,T W6038 032CJ17150 / MI5906-866 032BCJ100
256469 87,50 1,00 34,72 -24,9 0,28- 8,5:1 22 JG2204-3445 322 M,R,T C4213-050 032CJ17150 / MI5906-866 032BCJ100
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B1146H(HX/0,025/0,25) (->’92) 5M1144(HX/0,025/0,25) (->’92) - 207-4702 107-6002 207-5401
4B1185H(HX/0,025/0,25) (‘92-> flanged main) 5M1186(HX/0,025/0,25) (‘92->flanged main) -
4B1185H(HX/0,025/0,25) (‘97-> with thrust) 5M1219H(HX/0,025/0,25) (‘97 with thrust) 1T1219
KING CR4481XP (->’92) MB5227XP (->’92) -
CR4120XP (‘92-> flanged main) MB5209XP (‘92-> flanged main) -
CR4120XP (‘97-> with thrust) MB5315XP (‘97-> with thrust) TW 173AM
420A
OEM Engine details 2,0 Ltr 16V Engine code:420A • Displacement:1996 cc • Valves:16 • Comp. Ratio:9,8:1 • Head cc’s:52,00 • Gasket thickness:1,00 • Rod Length:139,00
Bore:87,50 • Stroke:83,00 • Block Ht:212,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K580M875 87,50 Std. 31,40 -5 0,10- 8,8:1 21 8750XX 331 1 C5498-040 - -
K580M88 88,00 0,50 31,40 -5 0,10- 8,8:1 21 8800XX 339 1,M C5498-040 - -
K580M885 88,50 1,00 31,40 -5 0,10- 8,8:1 21 8850XX 347 1,M C5498-040 - -
K581M875 87,50 Std. 31,40 5 0,10- 10,5:1 21 8750XX 334 1,M C5498-040 - -
K581M88 88,00 0,50 31,40 5 0,10- 10,5:1 21 8800XX 341 1 C5498-040 - -
K581M885 88,50 1,00 31,40 5 0,10- 10,5:1 21 8850XX 349 1,M C5498-040 - -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - - - 141-5801
KING - - -
* Same as Neon DOHC engine!
4G54B
OEM Engine details 2,5 Ltr 8V Engine code:4G54B • Displacement:2555 cc • Valves:8 • Comp. Ratio:7,0:1 • Head cc’s:73,50 • Gasket thickness:1,30 • Rod Length:166,00
Bore:91,10 • Stroke:98,00 • Block Ht:251,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K555M92 92,00 0,90 35,30 -17 0,70- 7,25:1-7,8:1 22 9200XX 382 1,M - - -
K555M925 92,50 1,40 35,30 -17 0,70- 7,25:1-7,8:1 22 9250XX 396 1,M - - -

Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 207-4202 107-6003 207-5402
KING - - -
6G72T as in 3000GT
OEM Engine details 3,0 Ltr 24V Engine code:6G72T • Displacement:2972 cc • Valves:24 • Comp. Ratio:8,0:1 • Head cc’s:48,00 • Gasket thickness:1,27 • Rod Length:141,00
Bore:91,10 • Stroke:76,00 • Block Ht:211,15
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K570M915 91,50 0,40 31,75 -14 0,40- 7,8:1 22 9150XX 343 1 C4243-051(2x) MI-3.0-S-65551H-06 -
K570M92 92,00 0,90 31,75 -14 0,40- 7,9:1 22 9200XX 355 1 C4243-051(2x) MI-3.0-S-65551H-06 -
K570M925 92,50 1,40 31,75 -14 0,40- 7,9:1 22 9250XX 362 1,M C4243-051(2x) MI-3.0-S-65551H-06 -
C/R with 1,00 mm head gasket and 43,00 head cc’s
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
321330 91,10 Std. 31,50 -15,5 0,65- 8.0:1 22 JC2206-3587 342 F,M,T C4243-040(2x) MI-3.0-S-65551H-06 -
321331 91,50 0,40 31,50 -15,8 0,65- 8.0:1 22 JG1006-3602 345 F,M,T C4243-040(2x) MI-3.0-S-65551H-06 -
321332 92,00 0,90 31,50 -16,5 0,65- 8.0:1 22 JG1006-3622 347 F,M,T C4243-040(2x) MI-3.0-S-65551H-06 -
321333 91,10 Std. 31,50 -6,5 0,65- 9.0:1 22 JC2206-3587 355 F,M,T C4243-040(2x) MI-3.0-S-65551H-06 -
321334 91,50 0,40 31,50 -6,9 0,65- 9.0:1 22 JG1006-3602 357 F,M,T C4243-040(2x) MI-3.0-S-65551H-06 -
321335 92,00 0,90 31,50 -7,5 0,65- 9.0:1 22 JG1006-3622 359 F,M,T C4243-040(2x) MI-3.0-S-65551H-06 -
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL - - - 207-4205 107-6004 207-5801
KING - - -

132 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 133
