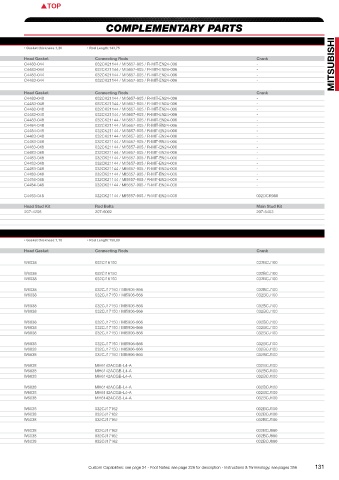

Mitsubishi PISTONS COMPLEMENTARY PARTS

Evo 10
OEM Engine details 2,0 Ltr 16V Engine code:4B11-T • Displacement:1998 cc • Valves:16 • Comp. Ratio:9,0:1 • Head cc’s:49,00 • Gasket thickness:1,20 • Rod Length:143,75
Bore:86,00 • Stroke:86,00 • Block Ht:220,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K636M86 86,00 Std. 33,25 -4,5 0 9,0:1 23 8600XX 362 1,Q,S C4483-044 032CK21144 / MI5657-905 / R-MIT-EN24-006 - MITSUBISHI
K636M865 86,50 0,50 33,25 -4,5 0 9,0:1 23 8650XX 368 1,Q,S C4483-044 032CK21144 / MI5657-905 / R-MIT-EN24-006 -
K636M87 87,00 1,00 33,25 -4,5 0 9,0:1 23 8700XX 374 1,M,Q,S C4483-044 032CK21144 / MI5657-905 / R-MIT-EN24-006 -
K636M88 88,00 2,00 33,25 -4,5 0 9,0:1 23 8800XX 380 1,M,Q,S C4483-044 032CK21144 / MI5657-905 / R-MIT-EN24-006 -
C/R with 50,50 head cc’s
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
296904 86,00 Std. 33,35 -5,5 0,10 9,0:1 23 JG1004-3386 320 PS,S,T C4483-048 032CK21144 / MI5657-905 / R-MIT-EN24-006 -
361293 86,25 0,25 33,35 -5,8 0,10 9,0:1 23 JG1004-3396 322 PS,S,T C4483-048 032CK21144 / MI5657-905 / R-MIT-EN24-006 -
296905 86,50 0,50 33,35 -6,2 0,10 9,0:1 23 JG1004-3405 324 PS,S,T C4483-048 032CK21144 / MI5657-905 / R-MIT-EN24-006 -
317836 87,00 1,00 33,35 -6,8 0,10 9,0:1 23 JG1004-3425 328 M,PS,S,T C4483-048 032CK21144 / MI5657-905 / R-MIT-EN24-006 -
317837 88,00 2,00 33,35 -8,2 0,10 9,0:1 23 JG1004-3465 336 M,PS,S,T C4483-048 032CK21144 / MI5657-905 / R-MIT-EN24-006 -
317839 89,00 3,00 33,35 -9,5 0,10 9,0:1 23 JG1004-3504 340 M,PS,S,T C4484-048 032CK21144 / MI5657-905 / R-MIT-EN24-006 -
317838 90,00 4,00 33,35 -10,9 0,10 9,0:1 23 JG1004-3543 350 M,PS,S,T C4484-048 032CK21144 / MI5657-905 / R-MIT-EN24-006 -
361295 86,00 STD 33,35 1,4 0,10 10,0:1 23 JG1004-3386 - F,PS,UL C4483-048 032CK21144 / MI5657-905 / R-MIT-EN24-006 -
361294 86,25 0,25 33,35 1,1 0,10 10,0:1 23 JG1004-3396 340 PS,S,T C4483-048 032CK21144 / MI5657-905 / R-MIT-EN24-006 -
361296 86,50 0,50 33,35 0,8 0,10 10,0:1 23 JG1004-3405 - F,PS,UL C4483-048 032CK21144 / MI5657-905 / R-MIT-EN24-006 -
361297 87,00 1,00 33,35 0,2 0,10 10,0:1 23 JG1004-3425 - F,PS,UL C4483-048 032CK21144 / MI5657-905 / R-MIT-EN24-006 -
317840 86,00 Std. 33,35 1,4 0,10 10,0:1 23 JG1004-3386 338 PS,S,T C4483-048 032CK21144 / MI5657-905 / R-MIT-EN24-006 -
317841 86,50 0,50 33,35 0,8 0,10 10,0:1 23 JG1004-3405 342 PS,S,T C4483-048 032CK21144 / MI5657-905 / R-MIT-EN24-006 -
317842 87,00 1,00 33,35 0,2 0,10 10,0:1 23 JG1004-3425 348 M,PS,S,T C4483-048 032CK21144 / MI5657-905 / R-MIT-EN24-006 -
317843 88,00 2,00 33,35 -1 0,10 10,0:1 23 JG1004-3465 354 M,PS,S,T C4483-048 032CK21144 / MI5657-905 / R-MIT-EN24-006 -
317844 89,00 3,00 33,35 -2,1 0,10 10,0:1 23 JG1004-3504 360 M,PS,S,T C4484-048 032CK21144 / MI5657-905 / R-MIT-EN24-006 -
317845 90,00 4,00 33,35 -3,3 0,10 10,0:1 23 JG1004-3543 366 M,PS,S,T C4484-048 032CK21144 / MI5657-905 / R-MIT-EN24-006 -
For stroker crank 98,00 mm
323912C 86,00 Std. 27,36 -13,8 0,11 9,0:1 23 JG1001-3386 278 M,S,T C4483-048 032CK21144 / MI5657-905 / R-MIT-EN24-006 032DCK980
#Available bearings
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B1236H(HX/0,025/0,25) 5M1237H(HX/0,025/0,25) 1T1237 207-4206 207-6002 207-5403
KING CR4586XP MB5722XP TW1029AM
CR4586XPC MB5722XPC -
4G64 16V as in Eclipse II
OEM Engine details 2,4 Ltr 16V Engine code:4G64 • Displacement:2351 cc • Valves:16 • Comp. Ratio:9,5:1-9,6:1 • Head cc’s:47,00 • Gasket thickness:1,10 • Rod Length:150,00
Bore:86,50 • Stroke:100,00 • Block Ht:235,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
With 4G63 head (21 mm pin)
K564M87 87,00 0,50 35,00 -22 0 8,5:1-8,7:1 21 8700XX 336 1,M W6038 032CI16150 032BCJ100
With 4G63 head (21 mm pin) 1400HD* (5,72 mm wall tool steel pins)
K625M865AP 86,50 Std. 35,00 -14 0 9,7:1 21 8650XX 357 1,M W6038 032CI16150 032BCJ100
K625M87AP 87,00 0,50 35,00 -14 0 9,7:1 21 8700XX 369 1 W6038 032CI16150 032BCJ100
With 4G63 head (22 mm pin)
K548M865AP 86,50 Std. 35,00 -17 0 9,0-9,3:1 22 8650XX 353 1 W6038 032CJ17150 / MI5906-866 032BCJ100
K548M87AP 87,00 0,50 35,00 -17 0 9,0-9,3:1 22 8700XX 360 1 W6038 032CJ17150 / MI5906-866 032BCJ100
With 4G63 head 1400HD* (5,72 mm wall tool steel pins)
K626M865AP 86,50 Std. 35,00 -14 0 9,7:1 22 8650XX 356 1 W6038 032CJ17150 / MI5906-866 032BCJ100
K626M87AP 87,00 0,50 35,00 -14 0 9,7:1 22 8700XX 360 1 W6038 032CJ17150 / MI5906-866 032BCJ100
With 4G63 head ( 5,10 mm wall pins)
K666M865AP 86,50 Std, 34,87 -10,8 0,13- 10,1:1/10,6:1 22 8650XX 360 1,M,S W6038 032CJ17150 / MI5906-866 032BCJ100
K666M8675AP 86,75 0,25 34,87 -11,1 0,13- 10,1:1/10,6:1 22 8675XX 363 1,M,S W6038 032CJ17150 / MI5906-866 032BCJ100
K666M87AP 87,00 0,50 34,87 -11,4 0,13- 10,1:1/10,6:1 22 8700XX 370 1,S W6038 032CJ17150 / MI5906-866 032BCJ100
With 4G63 head E85 series HD2* gas ported (5,72 mm wall tool steel pins)
K668M865AP 86,50 Std, 34,87 -4,5 0,13- 11,3:1/11,8:1 22 8650XX 348 1,M,S W6038 032CJ17150 / MI5906-866 032BCJ100
K668M8675AP 86,75 0,25 34,87 -4,75 0,13- 11,3:1/11,8:1 22 8675XX 350 1,M,S W6038 032CJ17150 / MI5906-866 032BCJ100
K668M87AP 87,00 0,50 34,87 -5 0,13- 11,3:1/11,8:1 22 8700XX 352 1,M,S W6038 032CJ17150 / MI5906-866 032BCJ100
For long rod 156,00 mm (5,10mm wall pins)
K667M865AP 86,50 Std, 28,87 -19,1 0,13- 9,0:1/9,5:1 22 8650XX+GLS33 340 1,M,S W6038 MH6142ACGB-L4-A 032BCJ100
K667M8675AP 86,75 0,25 28,87 -19,4 0,13- 9,0:1/9,5:1 22 8675XX+GLS34 341 1,M,S W6038 MH6142ACGB-L4-A 032BCJ100
K667M87AP 87,00 0,50 28,87 -19,8 0,13- 9,0:1/9,5:1 22 8700XX+GLS34 347 1,M,S W6038 MH6142ACGB-L4-A 032BCJ100
For long rod 156,00 mm HD2* gas ported (5,72mm wall pins)
K669M865AP 86,50 Std, 28,87 -11,75 0,13- 10,0:1/10,5:1 22 8650XX+GLS33 332 1,S W6038 MH6142ACGB-L4-A 032BCJ100
K669M8675AP 86,75 0,25 28,87 -12,25 0,13- 10,0:1/10,5:1 22 8675XX+GLS34 336 1,M,S W6038 MH6142ACGB-L4-A 032BCJ100
K669M87AP 87,00 0,50 28,87 -12,5 0,13- 10,0:1/10,5:1 22 8700XX+GLS34 340 1,S W6038 MH6142ACGB-L4-A 032BCJ100
For long rod 162,00 mm with crank 88,00 mm (5,10mm wall pins)
K667M865AP 86,50 Std, 28,87 -19,1 0,13- 7,7:1/8,2:1 22 8650XX+GLS33 340 1,M,S W6038 032CJ17162 032BCJ100
K667M8675AP 86,75 0,25 28,87 -19,4 0,13- 7,7:1/8,2:1 22 8675XX+GLS34 341 1,M,S W6038 032CJ17162 032BCJ100
K667M87AP 87,00 0,50 28,87 -19,8 0,13- 7,7:1/8,2:1 22 8700XX+GLS34 347 1,M,S W6038 032CJ17162 032BCJ100
For long rod 162,00 mm HD2* gas ported (5,72mm wall pins)
K669M865AP 86,50 Std, 28,87 -11,75 0,13- 8,5:1/9,0:1 22 8650XX+GLS33 332 1,M,S W6038 032CJ17162 032BCJ880
K669M8675AP 86,75 0,25 28,87 -12,25 0,13- 8,5:1/9,0:1 22 8675XX+GLS34 341 1,M,S W6038 032CJ17162 032BCJ880
K669M87AP 87,00 0,50 28,87 -12,5 0,13- 8,5:1/9,0:1 22 8700XX+GLS34 347 1,M,S W6038 032CJ17162 032BCJ880

130 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 131
