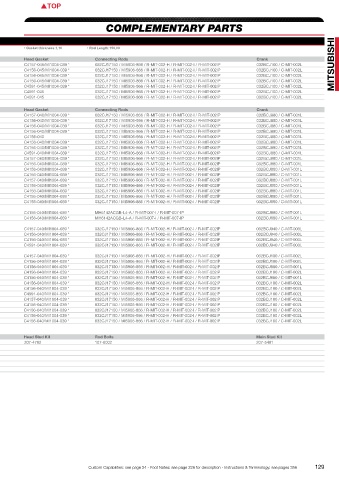

Mitsubishi PISTONS COMPLEMENTARY PARTS

4G63 (7-bolt) DSM GEN II / EVO 1-9
OEM Engine details 2,0 Ltr 16V Engine code:4G63 7-bolt • Displacement:1997 cc • Valves:16 • Comp. Ratio:8,3:1 • Head cc’s:47,00/43,00* • Gasket thickness:1,10 • Rod Length:150,00
Bore:85,00 • Stroke:88,00 • Block Ht:229,00 *Evo 8+9 =43,00
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
K676M85AP 85,00 Std. 28,70 1,9 0,30- 12,0:1/12,5:1 22 8500XX+GLS22 - 1,K,M,Q,S C4157-045/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ100 / C-MIT-002L MITSUBISHI
K676M8525AP 85,25 0,25 28,70 1,9 0,30- 12,0:1/12,5:1 22 8525XX+GLS22 - 1,K,M,Q,S C4156-045/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ100 / C-MIT-002L
K676M855AP 85,50 0,50 28,70 1,9 0,30- 12,0:1/12,5:1 22 8550XX+GLS22 - 1,K,M,Q,S C4156-045/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ100 / C-MIT-002L
K676M86AP 86,00 1,00 28,70 1,9 0,30- 12,0:1/12,5:1 22 8600XX+GLS33 - 1,K,M,Q,S C4156-045/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ100 / C-MIT-002L
K676M8625AP 86,25 1,25 28,70 1,9 0,30- 12,0:1/12,5:1 22 8625XX+GLS33 - 1,K,M,Q,S C4591-045/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ100 / C-MIT-002L
K676M865AP 86,50 1,50 28,70 1,9 0,30- 12,0:1/12,5:1 22 8650XX+GLS33 - 1,K,M,Q,S C4591-045 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ100 / C-MIT-002L
K676M87AP 87,00 2,00 28,70 1,9 0,30- 12,0:1/12,5:1 22 8700XX+GLS34 - 1,K,M,Q,S C4591-045 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ100 / C-MIT-002L
C/R with 1,00 mm head gasket
Kit Part # Bore (mm) Over size Comp. Ht. Dome/Dish cc’s Deck Clr. Comp. Ratio Pin Ø Ring # Gram Foot Notes Head Gasket Connecting Rods Crank
297050 85,00 Std. 34,70 -12,5 0,30- 8,5:1/9,0:1 22 JG1004-3346 303 K,PS,S,T C4157-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ880 / C-MIT-001L
297511 85,50 0,50 34,72 -13,2 0,28- 8,5:1/9,0:1 22 JG1004-3366 311 PS,S,T,U C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ880 / C-MIT-001L
208477 85,50 0,50 34,70 -13,3 0,30- 8,5:1/9,0:1 22 JG1004-3366 316 K,M,PS,R C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ880 / C-MIT-001L
297051 85,50 0,50 34,70 -13,3 0,30- 8,5:1/9,0:1 22 JG1004-3366 306 K,PS,S,T C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ880 / C-MIT-001L
297512 86,00 1,00 34,72 -14 0,28- 8,5:1/9,0:1 22 JG1004-3386 313 PS,S,T,U C4156-040 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ880 / C-MIT-001L
254006 86,00 1,00 34,70 -14 0,30- 8,5:1/9,0:1 22 JG1004-3386 319 K,M,PS,R C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ880 / C-MIT-001L
297052 86,00 1,00 34,70 -14 0,30- 8,5:1/9,0:1 22 JG1004-3386 309 K,PS,S,T C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ880 / C-MIT-001L
333152C 86,50 1,50 34,70 -14 0,30- 8,5:1/9,0:1 22 JG1001-3405 325 K,M,S,T C4591-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ880 / C-MIT-001L
361287 85,00 Std. 34,70 -5,0 0,30- 9.5:1/10.0:1 22 JG1004-3346 - F,PS,UL C4157-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ880 / C-MIT-001L
361288 85,50 0,50 34,70 -5,5 0,30- 9.5:1/10.0:1 22 JG1004-3366 - F,PS,UL C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ880 / C-MIT-001L
361289 86,00 1,00 34,70 -6,0 0,30- 9.5:1/10.0:1 22 JG1004-3386 - F,PS,UL C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ880 / C-MIT-001L
302951 85,00 Std. 34,72 -2,1/FT 0,28- 10,0:1/10,5:1 22 JG1004-3346 313 PS,S,T,U C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ880 / C-MIT-001L
297007 85,00 Std. 34,70 -2,1/FT 0,30- 10,0:1/10,5:1 22 JG1004-3346 313 K,PS,S,T C4157-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ880 / C-MIT-001L
302952 85,50 0,50 34,72 -2,1/FT 0,28- 10,0:1/10,5:1 22 JG1004-3366 315 PS,S,T,U C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ880 / C-MIT-001L
297008 85,50 0,50 34,70 -2,1/FT 0,30- 10,0:1/10,5:1 22 JG1004-3366 315 K,PS,S,T C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ880 / C-MIT-001L
302953 86,00 1,00 34,72 -2,1/FT 0,28- 10,0:1/10,5:1 22 JG1004-3386 317 PS,S,T,U C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ880 / C-MIT-001L
297009 86,00 1,00 34,70 -2,1/FT 0,30- 10,0:1/10,5:1 22 JG1004-3386 317 K,M,PS,S,T C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ880 / C-MIT-001L
For long rod 156,00 mm
312758C 85,50 0,50 28,70 -13,3 0,30- 8,5:1/9,0:1 22 JG1001-3366 280 M,K,S,T C4156-040/MI1004-039 * MH6142ACGB-L4-A / R-MIT-007-I / R-MIT-007-IP 032BCJ880 / C-MIT-001L
312759C 86,00 1,00 28,70 -14 0,30- 8,5:1/9,0:1 22 JG1001-3386 284 M,K,S,T C4156-040/MI1004-039 * MH6142ACGB-L4-A / R-MIT-007-I / R-MIT-007-IP 032BCJ880 / C-MIT-001L
For stroker crank 94,00 mm
297478 85,00 Std. 31,70 -17,1 0,30- 8,5:1/9,0:1 22 JG1004-3346 293 K,M,PS,Q,S,T C4157-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ940 / C-MIT-003L
297479 85,50 0,50 31,70 -17,9 0,30- 8,5:1/9,0:1 22 JG1004-3366 293 K,PS,Q,S,T C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ940 / C-MIT-003L
297480 86,00 1,00 31,70 -18,6 0,30- 8,5:1/9,0:1 22 JG1004-3386 299 K,PS,Q,S,T C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ940 / C-MIT-003L
340591C 86,25 1,25 31,70 -18,6 0,30- 8,5:1/9,0:1 22 8625XX 310 K,Q,S,T C4591-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ940 / C-MIT-003L
For stroker crank 100,00 mm
297047 85,00 Std. 28,70 -21,7 0,30- 8,5:1/9,0:1 22 JG1004-3346 268 K,PS,Q,S,T C4157-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ100 / C-MIT-002L
270666 85,50 0,50 28,70 -22 0,30- 8,5:1/9,0:1 22 JG1004-3366 285 K,M,Q,R C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ100 / C-MIT-002L
297506 85,50 0,50 28,70 -22 0,30- 8,5:1/9,0:1 22 JG1004-3366 276 PS,S,T,U C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ880 / C-MIT-001L
297048 85,50 0,50 28,70 -22 0,30- 8,5:1/9,0:1 22 JG1004-3366 272 K,PS,Q,S,T C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ100 / C-MIT-002L
297507 86,00 1,00 28,70 -23,3 0,30- 8,5:1/9,0:1 22 JG1004-3386 278 PS,S,T,U C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ880 / C-MIT-001L
270667 86,00 1,00 28,70 -23,3 0,30- 8,5:1/9,0:1 22 JG1004-3386 286 K,M,Q,R C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ100 / C-MIT-002L
297049 86,00 1,00 28,70 -23,3 0,30- 8,5:1/9,0:1 22 JG1004-3386 274 K,PS,Q,S,T C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ100 / C-MIT-002L
315009C 86,50 1,50 28,70 -21,7 0,30- 8,5:1/9,0:1 22 JG1001-3405 280 K,M,Q,S C4591-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ100 / C-MIT-002L
361290 85,00 Std. 28,70 -12,5 0,30- 9,5:1/10.0:1 22 JG1004-3386 - F,PS,Q,UL C4157-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ100 / C-MIT-002L
361291 85,50 0,50 28,70 -13,2 0,30- 9,5:1/10.0:1 22 JG1004-3386 - F,PS,Q,UL C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ100 / C-MIT-002L
361292 86,00 1,00 28,70 -13,9 0,30- 9,5:1/10.0:1 22 JG1004-3386 - F,PS,Q,UL C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ100 / C-MIT-002L
312758C 85,50 0,50 28,70 -13,3 0,30- 10,0:1/10,5:1 22 JG1001-3366 280 K,M,Q,S,T C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ100 / C-MIT-002L
312759C 86,00 1,00 28,70 -14 0,30- 10,0:1/10,5:1 22 JG1001-3386 284 K,M,Q,S,T C4156-040/MI1004-039 * 032CJ17150 / MI5906-866 / R-MIT-002-H / R-MIT-002-I / R-MIT-002IP 032BCJ100 / C-MIT-002L
* 1400HD Strutted Forging/HD2 Asymmetrical Gasported Forging
* Head gasket :Evo 9 use MI1004-039
Bearings Rod Main Thrust Head Stud Kit Rod Bolts Main Stud Kit
ACL 4B1146H(HX/0,025/0,25) (->’92) 5M1144(HX/0,025/0,25) (->’92) - 207-4702 107-6002 207-5401
4B1185H(HX/0,025/0,25) (‘92-> flanged main) 5M1186(HX/0,025/0,25) (‘92->flanged main) -
4B1185H(HX/0,025/0,25) (‘97-> with thrust) 5M1219H(HX/0,025/0,25) (‘97 with thrust) 1T1219
KING CR4481XP (->’92) MB5227XP (->’92)
CR4120XP (‘92-> flanged main) MB5209XP (‘92-> flanged main) -
CR4120XP (‘97-> with thrust) MB5315XP (‘97-> with thrust) TW 173AM

128 **When exceeding 2 BAR boost and/or 500HP(4 Cylinder), please inquire for needed/available pin upgrades!! For 200+HP per cilinder custom part is adviced!!** Custom Capabilities: see page 24 - Foot Notes: see page 226 for description - Instructions & Terminology: see pages 356 129
